Functional Time Series Basics

Prepatory Information

Although the package is available on CRAN, several functions have been updated in preparation for this document and have not yet been uploaded to CRAN. Hence, we recommend installing the code from GitHub as:

devtools::install_github('https://github.com/jrvanderdoes/fChange.git@main')
library(fChange)

The data for the included exercises can be downloaded using the following code:

urlfile <-  paste0('https://raw.githubusercontent.com/jrvanderdoes/fChange',
              '/main/vignettes/articles/german_data.csv')
data <- read.csv(urlfile)

The slides can be reached here.

Introduction

In Time Series Analysis, one considers a sequence of data observed over time. Such data can be denoted $X_1,...,X_T$, where $X_i$ is the data observed at time $i$, and $T$ describes the number of time points at which data has been obtained, also referred to as the “length" of the time series. An example of a scalar, or real-valued, time series of length $T=504$ is shown in Figure 1.1. This depicts electricity spot prices in Spain obtained each hour in Euro’s per Megawatt/hour during a three week period in late spring of 2024. The ultimate goal of time series analysis is to try and make inferences about the process that generated the data. If we understand how a time series evolves, we can, for example, forecast it as well as describe how much variability there might be in future values. The time series shown in Figure 1.1 exhibits apparent daily and weekly”seasonality" or “periodicity", which we might expect in future data.

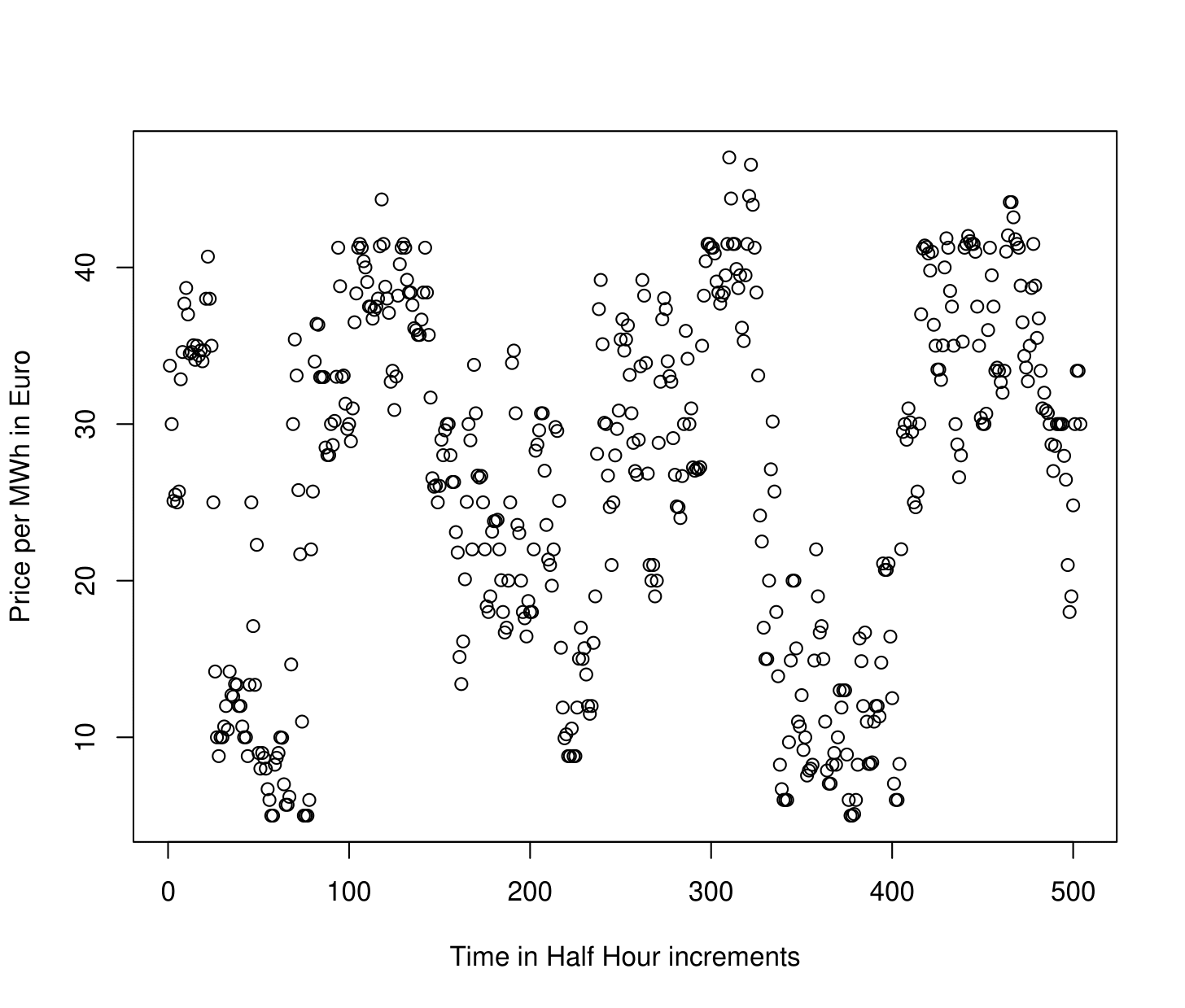

Hourly electricity spot price in Spain for three weeks in 2014.

Many modern time series arise from observing a nearly continuous time process at a high frequency. Figure 1.2 shows one year’s, rather than three weeks, worth of hourly electricity spot prices in Spain from the year 2024 $(T=8736)$. There are evidently some patterns in the data, although they are somewhat difficult to see given the high frequency of the data – it is even difficult to see the expected daily and weekly periodicity in the time series.

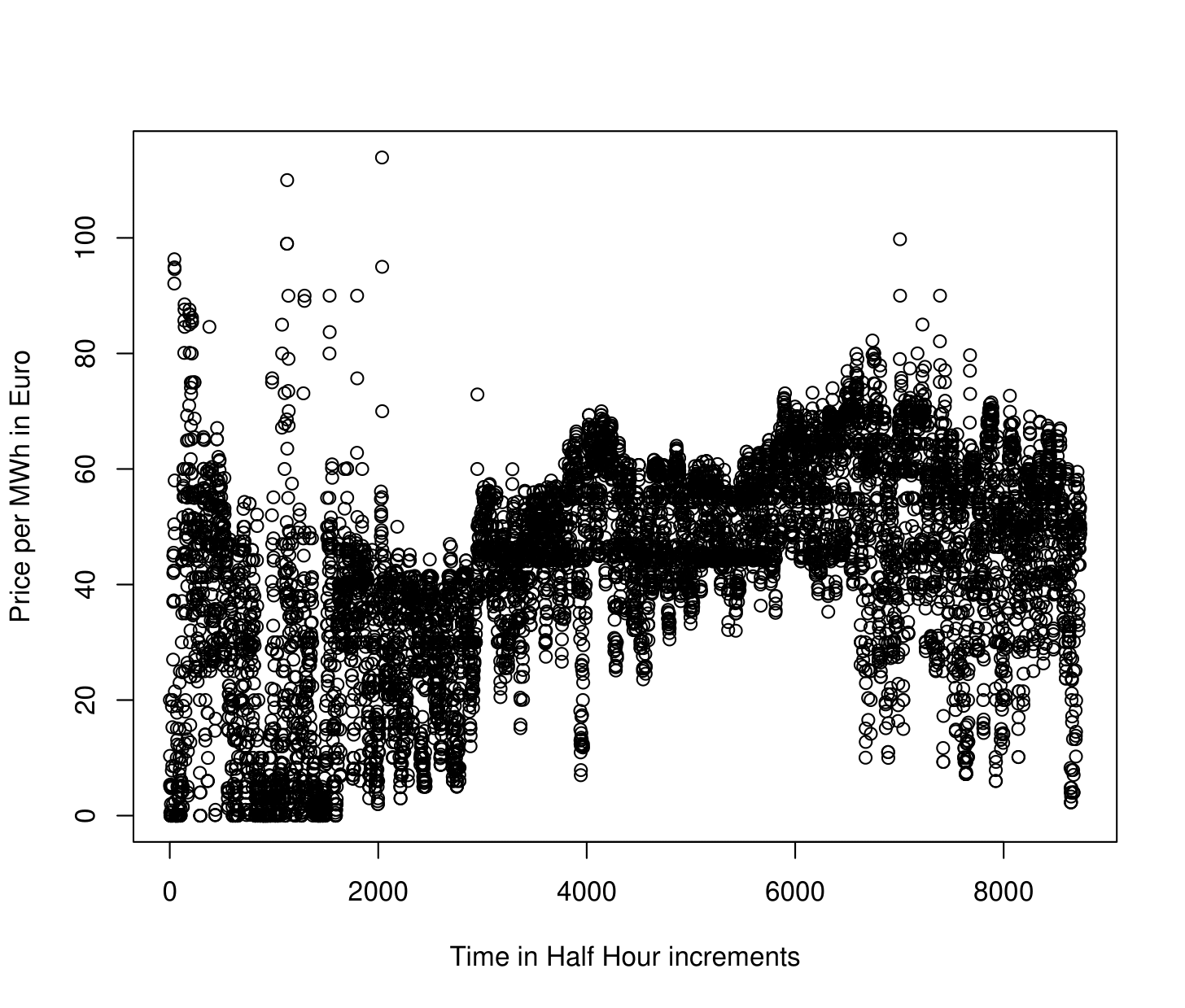

Hourly electricity spot price in Spain during the year 2014.

An alternative way to view such data is as what we will call a “functional time series" (FTS). One might imagine here that each data point $X_t$ is an observation from an underlying”price process" $\{P(t), \; t\ge 0\}$, where $t$ is time in hours starting from January 1, 2024, and $P(t)$ is the spot price at time $t$. Since the price undergoes daily periodicity, it seems natural to segment the price process into “daily price functions" or”daily prices curves" $$X_i(t) = P( (i-1)\times 24 + t), \quad i\in \{1,...,365\}, \quad t \in [0,24].$$

Of course we are not able to observe $X_i(t)$ at all points $t\in [0,24]$. With hourly data as in Figure 1.2, we observe 24 data points for each daily function. Nonetheless, thinking of these data as being “functional" has some benefits. For instance, we might linearly interpolate the observed data to create full”daily price curves", and plot them sequentially as an alternative visualization of the data to Figure 1.2. Such visualizations are shown in Figures 1.3 and 1.4. There we see not only pronounced daily seasonality, but also we observe more easily weekly periodicity as well as some overall trends and changes in variability throughout the year.

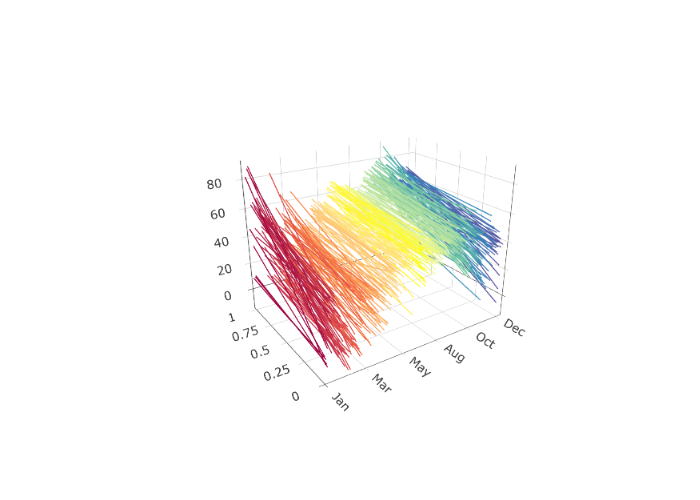

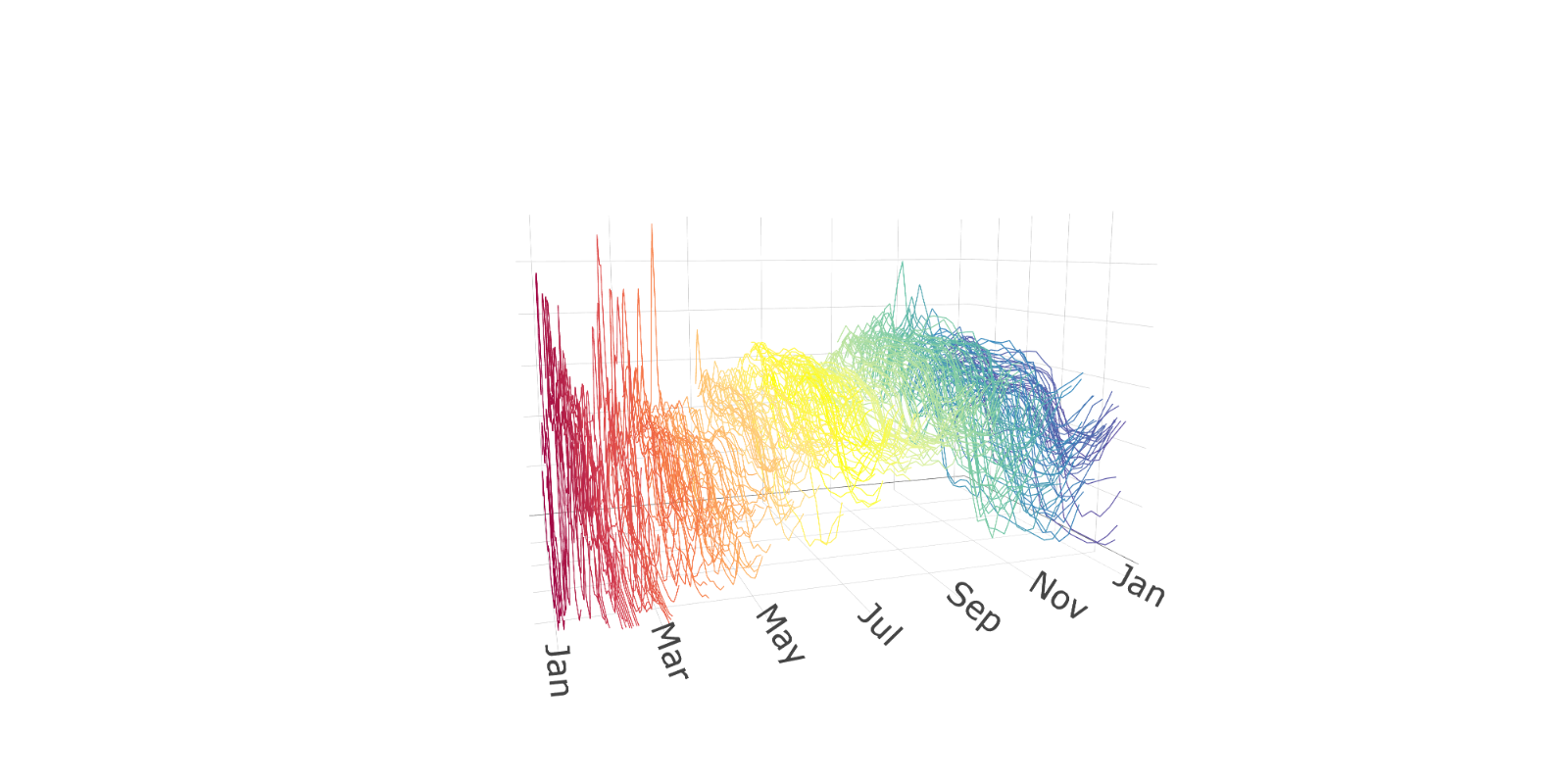

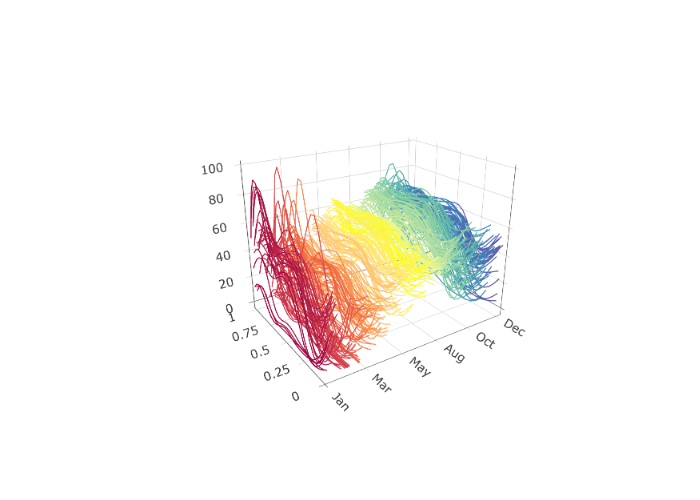

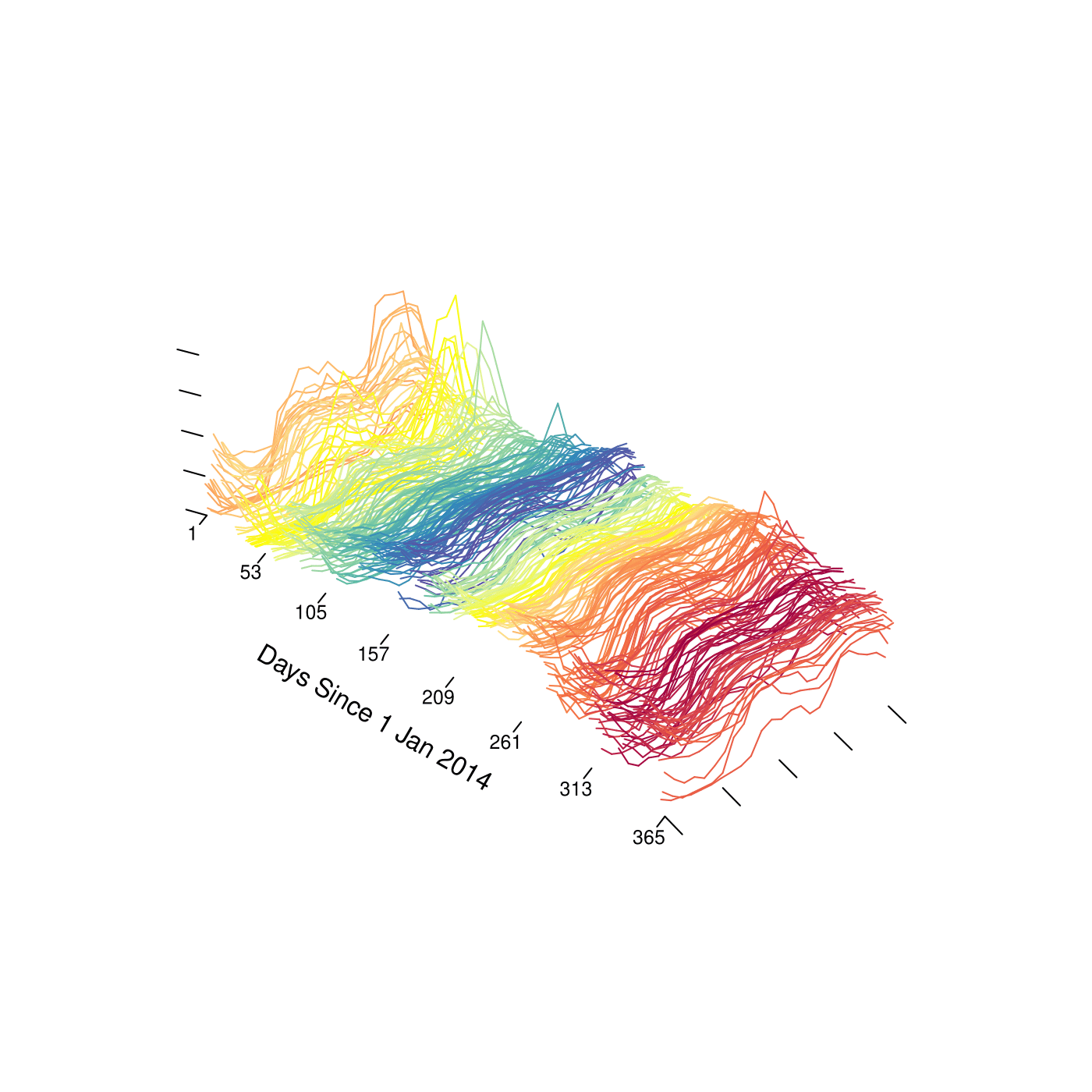

Hourly electricity spot price in Spain during the year 2014 visualized as a functional time series.

Another angle of hourly electricity spot price in Spain during the year 2014 visualized as a functional time series.

Such functional time series arise in many different settings. Figure 1.5 shows a functional time series constructed from one minute resolution intraday prices of an S&P500 Exchange Traded Fund and linear interpolation from the years 2019 to 2023 ($T\approx1250$). Here each curve is constructed from 390 observations and linear interpolation. Other examples include pollution in a city (Figure 1.6) and (log) mortality rates as a function of age in France (Figure 1.7).

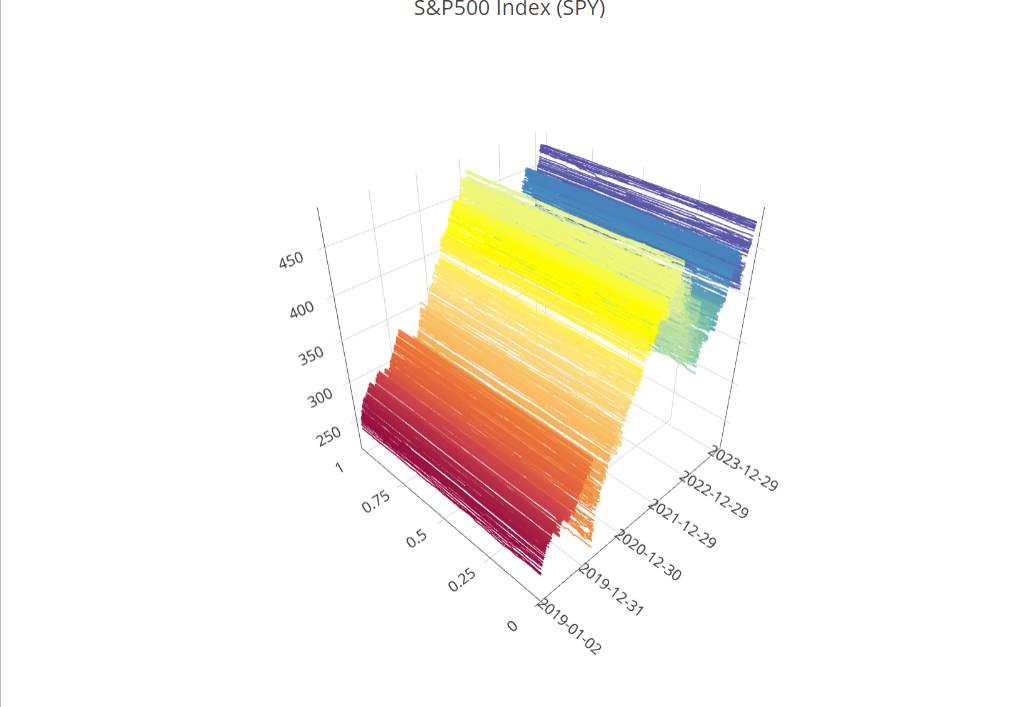

An FTS constructed from one minute resolution intraday prices from the S&P 500.

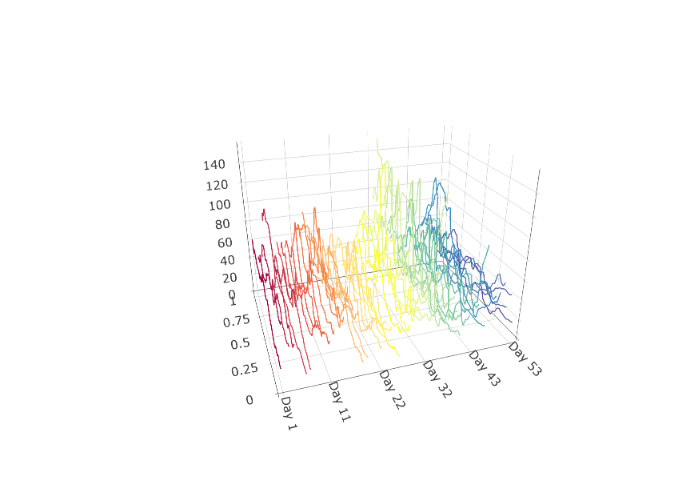

Levels of particulate matter pollution in parts per million measured every 30 minutes in a Graz, Austria, visualized as a functional time series.

The benefits of the “functional" perspective are not just limited to visualization. The models and inferential procedures that come about from thinking of such data as functional data objects are often unique, flexible, and respect the”continuous" nature of the process that generated the data. Moreover, for many data of this type we are interested in inferring, or producing predictions that are compatible with, the function properties of the process that generated the data such as “continuity" or”smoothness". These natural concepts are unique to functions and are not easily handled solely within a multivariate framework.

The goal of this short course is to introduce functional time series, and discuss some tools for analyzing them in R.

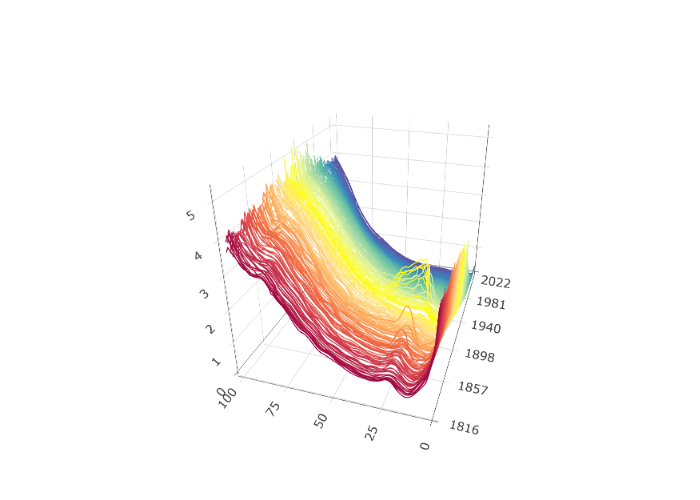

Log mortality rates for French males across ages 0 to 100 over viewed as a functional time series over the years 1816 to 2022.

Function Spaces and $L^2[0,1]$

From a theoretical perspective we think of a time series as being a realization of length $T$ from a discretely indexed stochastic process. In other words, when we observe a real valued time series $X_1,...,X_T$, we assume that it came from observing a partial stretch of length $T$ from a stochastic process $\{X_i, \; i\in \mathbb{Z}\}$, where $X_i \in \mathbb{R}$. Multivariate or vector valued time series are of the form ${\bf X}_1,...,{\bf X}_T$ where ${\bf X}_i \in \mathbb{R}^d$, and may be similarly viewed as arising from observing a stochastic process $\{{\bf X}_i \in \mathbb{R}^d, \; i\in \mathbb{Z}\}$.
When we think of data as being “functional" in nature, we think of them as taking their values in some space of functions rather than in $\mathbb{R}^d$. When functional data are defined over a compact interval, for instance $[0,24]$ as in the electricity spot price curve example, it is natural to view them as functions $$X_i : [0,24] \mapsto \mathbb{R}.$$ For functions defined over a compact interval it makes sense for the sake of simplicity to assume, by applying a linear transformation to the input, that the function is defined over the interval $[0,1]$.

What are reasonable classes of functions $X_i:[0,1] \mapsto \mathbb{R}$ might take its value in? Some “famous" spaces of functions are the space of continuous functions $$C[0,1] = \{ f:[0,1] \mapsto \mathbb{R}, \; f \mbox{ is continuous}\},$$ or the space of square integrable functions $$L^2[0,1] = \left\{ f:[0,1] \mapsto \mathbb{R}, \; \int_0^1 f^2(x)dx < \infty \right\}.$$ Another important example is”Sobolev Space", which takes into consideration the derivatives of the function. An example of a Sobolev space involving the first derivative is $$W^{1,2} = \left\{ f:[0,1] \mapsto \mathbb{R}, \; \int_0^1 f^2(x)dx + \int_0^1 [f']^2(x)dx < \infty \right\}.$$ It is worth noting that each of these spaces are “infinite dimensional", and so viewing data as residing in these spaces is a significant departure from the finite dimensional setting of $\mathbb{R}^d$.

For a given function space $\mathcal{H}$, e.g. any of the above three examples, a functional time series (FTS) $X_1,...,X_T$ is an observed stretch of data of length $T$ of a function-valued stochastic process $\{X_i \in \mathcal{H}, \; i\in \mathbb{Z}\}$.

The choice of space that we view the data as residing in is consequential in that it suggests how we might measure distance between functions. The canonical distance measure, or norm, on $C[0,1]$ is $$\| f-g \|_\infty = \sup_{x\in [0,1]} |f(x) - g(x)|.$$ On $L^2[0,1]$, we usually measure distance using $$\| f-g \|_2 = \left( \int_{0}^{1} [f(x) - g(x) ]^2 dx \right)^{1/2}.$$

What ends up being a critical distinction between these two spaces and their canonical distance measures is that the space $L^2[0,1]$ with distance measure $\|\cdot \|_2$ is a separable Hilbert Space, whereas the space $C[0,1]$ with distance measure $\|\cdot\|_\infty$ (or even with distance $\|\cdot\|_2$) is not a separable Hilbert space. In addition to the mathematical properties of linearity and completeness, Hilbert spaces also have the nice property that their distance measure is generated by an inner product. The canonical inner product on $L^2[0,1]$ is $$\langle f,g \rangle = \int_{0}^{1}f(t)g(t)dt.$$ Evidently $\|f\|_2^2 = \langle f,f\rangle$. The existence of an inner product means that the space $L^2[0,1]$ has a similar “geometry" to a finite dimensional space — the inner product defines angles between functions and further the notion of”orthogonality".

Separability in this setting is equivalent to the existence of a complete orthonormal system (CONS) of basis functions $\phi_i$, $i\in \{1,2,...\}$ satisfying the properties 1) $\langle \phi_i, \phi_j \rangle = {1}\{i=j\}$, i.e. the functions are orthogonal and have norm one, and 2) for any $f\in L^2[0,1]$, $$\begin{aligned}\label{cons} f(t) = \sum_{j=1}^{\infty} \langle f , \phi_j \rangle \phi_j(t). \end{aligned}$$

Here equality is understood in the $L^2-$sense, which means that the $\|\cdot\|_2$ norm of the difference between the left and right hand sides of the above is zero.

Equation $$cons$$, in addition to the geometry introduced by the inner product, means that the space $L^2[0,1]$ is “close" in a sense to $\mathbb{R}^d$. If for instance we were ever able to make the simplification $$\begin{aligned} f(t) = \sum_{j=1}^{\infty} \langle f , \phi_j \rangle \phi_j(t) \approx \sum_{j=1}^{d} \langle f , \phi_j \rangle \phi_j(t), \end{aligned}$$ the right hand side of the above is characterized by $( \langle f , \phi_1 \rangle,..., \langle f , \phi_d \rangle )^\top \in \mathbb{R}^d$, and we would be in more familiar territory. This line of reasoning suggests that an important step in functional data and FTS analysis is performing effective dimension reduction.

Throughout these notes we generally consider FTS that we think of as taking value in $L^2[0,1]$. We conclude this section with a couple of remarks.

An important result of analysis is that all infinite dimensional, separable Hilbert spaces are “isometrically isomorphic". This means that for any separable Hilbert spaces $\mathcal{H}_A$ and $\mathcal{H}_B$ with respective norms $\|\cdot\|_A$ and $\|\cdot\|_B$, there exists a bijection $z: \mathcal{H}_A \mapsto H_B$ so that for all $f,g \in \mathcal{H}_A$, $\|f-g\|_A = \|z(f) - z(g)\|_B$. As a result all separable Hilbert spaces are in a sense equivalent to $L^2[0,1]$— any data residing in another separable Hilbert space can be mapped to $L^2[0,1]$ in such a way that distances remain the same. Many important spaces in applications, for example the Sobolev space $W^{1,2}$ mentioned above, may be fashioned into separable Hilbert spaces, and so in a sense considering methods to analyze data in $L^2[0,1]$ has broad implications for analyzing many types of functional data.

Analyzing FTS when we think of the data as being elements of a more general Banach space, e.g. $C[0,1]$, poses some significant challenges from a theoretical perspective. Many problems remain open in this area.

Preprocessing FTS

In most cases in which FTS analysis is applied (but not all!), the observed data are discrete measurements of an underlying process that is indexed by a continuous domain. For example, the spot price data visualized in Figure 1.3 we can view as being indexed on the continuous interval $[0,24]$, although with hourly data we only observe each daily function on the points $\{0,....,24\} \subset[0,24]$. The first step in FTS is often to complete these data to full curves using “interpolation" or”smoothing" techniques. Good resources for this material are (J. Ramsay, Hooker, and Graves 2009) and (J. O. Ramsay and Silverman 2005).

Such raw data can often be represented as $$X_i(t_{i,j}), \;\; i \in \{1,...,T\}, \; \; j \in \{1,...,n_i\}, \;\; 0 \le t_{i,1} < \cdots < t_{i,n_i} \le 1.$$

One very simple way to complete such data to a full curve is using linear interpolation. We simply define a function $\hat{X}_i: [0,1] \mapsto \mathbb{R}$ so that for any $t$ such that $t_{i,j} \le t \le t_{i,j+1}$, $$\hat{X}_i(t) = \frac{X_i(t_{i,j+1})-X_i(t_{i,j})}{t_{i,j+1} - t_{i,j} }[t -t_{i,j}] + X_i(t_{i,j}).$$ Evidently the linearly interpolated curve $\hat{X}_i(t_{i,j})$ will agree with $X_i(t_{i,j})$ at each $t_{i,j}$. This is an effective approach when the raw data are thought to be observed without measurement error from an approximately continuous underlying process, and are “dense" in the sense that the $n_i$ is large and the $t_{i,j}'s$ are distributed approximately uniformly in the interval $[0,1]$.

When we view the underlying curve $X_i$ as a function in $L^2[0,1]$, another natural approach to complete such data to a full curve is to take advantage of $$cons$$ and construct for each $t\in [0,1]$$$\begin{aligned} \label{smoother} \hat{X}_i(t) = \sum_{j=1}^{K} c_i \phi_j(t) = {\bf c}^\top {\bf \Phi}(t), \end{aligned}$$ where the $\phi_j$ is a CONS, $K$ is a user-specified parameter, ${\bf c} = (c_1,....,c_K)^\top$ and ${\bf \Phi}(t) = (\phi_1(t),...,\phi_K(t))^\top$. The user in this typically specifies the basis functions along with the integer $K$, and then the vector of coefficients ${\bf c}$ is chosen using some optimization procedure. Two popular choices for the basis functions are the standard Fourier basis, which are functions of the form $$\phi_j(t) = \sqrt{2} \cos (2 \pi j t) + \sqrt{2} \sin (2 \pi j t),$$ and the bases of orthogonal B-spline polynomials. A plot of cubic B-spline polynomials based on equally spaced knots is shown in Figure 1.9.

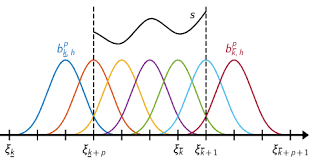

A plot of cubic B-spline polynomials based on equally spaced knots.

While a detailed explanation of spline interpolation/smoothing is beyond the scope of this short course, we mention that this method came about as a way to smooth or interpolate raw data in such a way that the resulting curve maintains certain differentiability properties.

One often considers the nature of the data and the goals of subsequent analysis when choosing a basis. For data that his highly periodic it might make sense to smooth/interpolate it using a Fourier basis, while a spline basis might be more appropriate for less structured data that we think may have been drawn from an underlying continuous or differentiable function. Given the flexibility (pun intended) of cubic-spline smoothing, it is often used as a default.

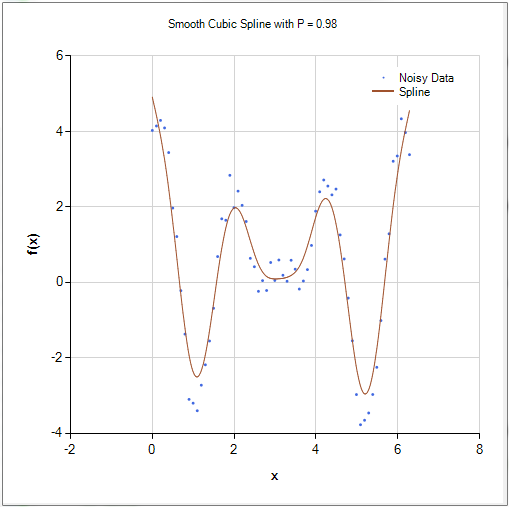

Example of a functional data object created using penalized cubic splines.

After choosing a basis, we still must select $K$ and the coefficient vector ${\bf c}$ in $$smoother$$. This is typically done using least squares: we choose ${\bf c}$ and $K$ to minimize $$\mbox{SSE}_{i,K}({\bf c}) = \sum_{j=1}^{n_i}[X_i(t_{i,j}) - {\bf c}^\top{\bf \Phi}(t_{i,j})]^2.$$ Here if $K \ge n_i$, the sum of squared errors can be minimized at $SSE_{i,K}({\bf c})=0$, so that the data are “interpolated", i.e. the function $\hat{X}_i$ attains the same values as the observed data at the points $t_{i,j}$. This is sometimes desirable, for example if the raw functional data is thought to be observed without additional observational error. In some cases though this leads to evident”overfitting". In these cases it can make sense to additionally penalize the “complexity" or”roughness" of the function $\hat{X}_i$. Although this can be done in many ways, a natural choice is to measure the roughness of the function using a “second derivative penalty" $$\mbox{PEN}_{i,K}({\bf c}) = \int_{0}^{1} \left[ \frac{d^2}{dt^2} {\bf c}^\top {\bf \Phi}(t) \right]^2 dt,$$ and then choose ${\bf c}$ to minimize $$\mbox{SSE}_{i,K}({\bf c}) + \lambda \mbox{PEN}_{i,K}({\bf c}),$$ for a tuning parameter $\lambda >0$. Large $\lambda$ forces the function $\hat{X}_i$ to be less rough, whereas small $\lambda$ leads to a function that more closely interpolates the data. Often $\lambda$ is selected using leave-one-out cross-validation, or using the”eye-ball test"— we try several $\lambda$ until the resulting curve “looks good".

Using either of these methods, we can complete the raw data to full curves $\hat{X}_i(t)$ which we can relabel back to $X_i(t)$. Often practically once we have created such curves we will re-valuate them at some, often dense, grid of equally spaced points for subsequent analyses and storage as an array.

Suppose that the Spanish electricity data in Figure 1.4 was collected between 20 and 40 times a day, at potentially different points of time. Such data could be fit using a B-spline basis and evaluated such that each curve is evaluated at the same time each day. Different values for $\lambda$ can result in drastically different discrete evaluations; see Figures below. In practice, organizing data such that each day is observed at the same time points is computationally valuable.

Unevenly observed electricity prices fit to B-spline basis functions and evaluated at 24 daily observation for smoothing parameter $\lambda=1$.

Unevenly observed electricity prices fit to B-spline basis functions and evaluated at 24 daily observation for smoothing parameters $.

Visualizing FTS

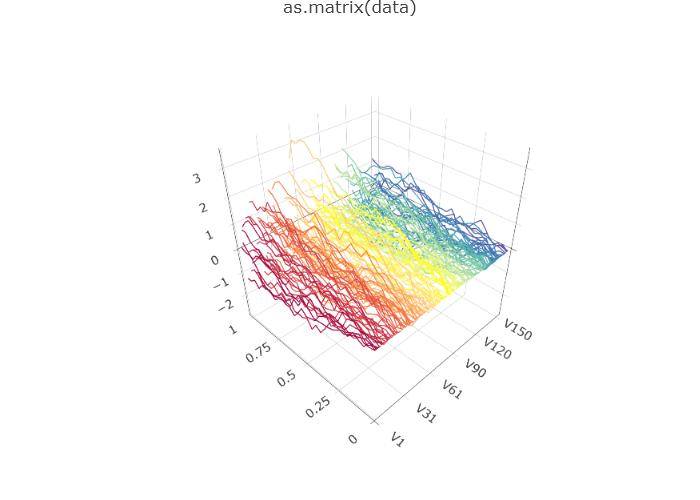

After potentially pre-processing the data, it is often useful to plot the FTS $\{X_i(t), \; i \in \{1,...,T\}, \; t\in [0,1]\}$ to inspect for trends and gauge the overall behavior of the series. One way to do this is with what is called a rainbow spaghetti plot. In such a plot, curves are rendered in three dimensions, with one axis denoting “discrete time" $i$, $i \in \{1,...,T\}$, one axis measuring the”functional parameter" $t\in [0,1]$, and the vertical axis measuring the real value $X_i(t)$. Curves are initially plotted in red, and then progress through the rainbow color spectrum to violet for the final curves.

The functional plots included to this point have been rainbow spaghetti plots, and are interactive in R. However, there are many possible visualizations for functional data. Two other visualizations of the (log) French mortality rates are shown in below. The first is not interactive and runs much faster. Hence, it is well-employed for larger FTS. The second is called a rainbow plot and stacks the observations to highlight major shifts.

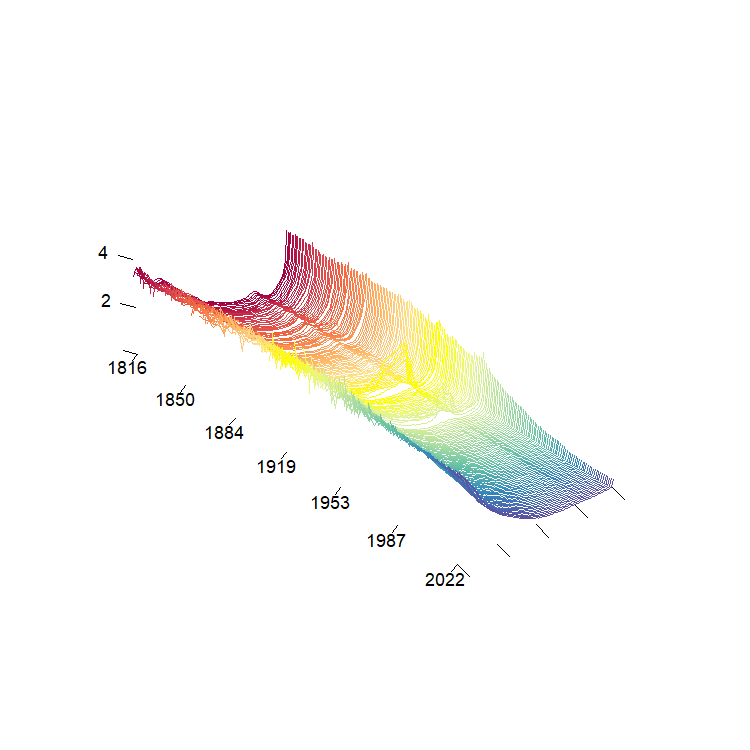

Fast rainbow spaghetti plot of the FTS French mortality data.

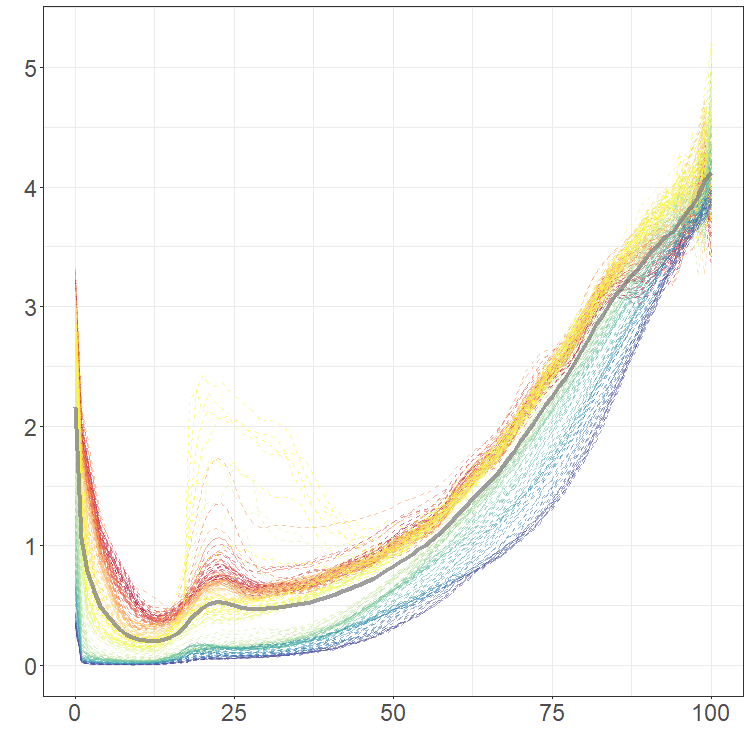

Rainbow plot of the FTS French mortality data.

Mean, covariance, and principal component analysis

When beginning to analyze an FTS, we often consider computing some summary values and performing dimension reduction. Many of these tasks are carried out by thinking of the FTS as being stationary.

An FTS $\{X_i \in \mathcal{H}, \; i \in \mathbb{Z}\}$ is (strictly) stationary if for each $p\in \mathbb{N}$, and $i_1,...,i_p,h \in \mathbb{Z}$, and all (Borel) subsets $B_1,...,B_p \subset \mathcal{H}$, $$P(X_{i_1} \in B_1,..., X_{i_p} \in B_p ) = P(X_{i_1+h} \in B_1,..., X_{i_p+h} \in B_p ).$$

Roughly speaking a time series is stationary if its stochastic properties are the same no matter where we look at the series. This would imply for example that each curve $X_i$ has the same distribution, and further that each pair of curves $(X_i,X_{i+h})$ have the same joint distribution for each $i$. Of course with most real time series this assumption is clearly invalid, and we discuss statistical tests of this assumption in Chapter 3, however the resulting summaries and dimension reduction methods are often still useful even when analyzing non-stationary time series.

For a stationary FTS $X_i$ the mean function of the series is $$E[X_i(t)] = \mu(t).$$ We typically estimate the mean function using the sample mean function $$\bar{X}_T(t) = \frac{1}{T} \sum_{i=1}^T X_i(t).$$

The covariance operator of a stationary FTS is defined by $$\label{e:CO} C(x)(t) := E [\langle X_i-\mu, x\rangle (X_i-\mu)(t) ],\ \ \ x \in L^2[0,1],$$ and is well defined so long as $E\|X_i\|_2^2 < \infty.$ The covariance operator is also characterized by the covariance kernel $$c(t,s) = E[ (X_i(t) - \mu(t) ) (X_i(s) - \mu_i(s))],$$ via the relation

$$C(x)(t) = \int_0^1 c(t,s)x(s) ds.$$ In a sense the covariance kernel takes the place of the “covariance matrix", and the covariance operator is akin to using such a matrix to define a linear operator on the space.

These quantities are most commonly estimated using the empirical covariance kernel

$$\widehat{c}(t,s) = \frac{1}{T} \sum_{i=1}^T [X_i(t) - \bar{X}_T(t)][X_i(s) - \bar{X}_T(s) ],$$ and the empirical covariance operator $$\widehat{C}(x)(t) = \int_0^1 \hat{c}(t,s)x(s) ds.$$ The eigenfunctions of $C$, denoted by $v_j, j \ge 1$, are often called the functional principal components (FPCs), i.e. $C(v_j) = \lambda_j v_j$. These functions are orthogonal and define a CONS of $L^2[0,1]$. As such they may be used to decompose the FTS as in $$cons$$. This turns out to be a somewhat special expansion for a stationary FTS called the Karhunen–Loéve (KL) expansion. It takes the form $$\label{e:KL} X_i(t) = \mu(t) + \sum_{j=1}^\infty \xi_{ij} v_j(t), \ \ \ \xi_{ij} = \langle X_i - \mu, v_j \rangle.$$ The scores $\xi_{ij}$ satisfy $E\xi_{ij} = 0$, $E\xi_{ij}^2 = \lambda_j$, $E[\xi_{ij}\xi_{ij^\prime}] = 0$ for $j\neq j^\prime$.

This KL expansion is “optimal" in the following sense: if we consider the truncated expansion $$\begin{aligned} \label{fin-dim} X_i^{(d)}(t) = \mu(t) + \sum_{j=1}^d \xi_{ij} v_j(t) \end{aligned}$$ for any positive integer $d$, this”finite dimensional" representation of $X_i$ is optimal in that it minimizes the mean squared-normed error $$E\| X_i - X_i^{(d)}\|^2_2$$ among all possible choices of the functions $v_1,...,v_d$ in $$fin-dim$$.

Expansion is not directly accessible because $\mu$ and the $v_j$ are unknown population parameters, but can be replaced with their empirical counterparts. In particular the FPCs $v_j$ and the eigenvalues $\lambda_j$ are estimated by $\hat v_j$ and $\hat\lambda_j$ defined as the solutions to the equations $$\label{e:emp} \widehat{C}(\hat v_j)(t) = \hat \lambda_j \hat v_j(t), \ \ j \in \{1,...,T\}.$$

Each curve $X_i$ can then be approximated by a linear combination of a finite set of the estimated FPCs $\hat v_j$, i.e. $$\begin{aligned} \label{emp-fin-dim} X_i(t) \approx \bar{X}_T + \sum_{j=1}^{d} \hat{\xi}_{ij} \hat v_j(t), \end{aligned}$$ where the $\hat{\xi}_{ij}=\langle X_i-\bar{X}_T, {\hat v}_j \rangle$ are the sample scores. Each $\hat{\xi}_{ij}$ quantifies the contribution of the curve ${\hat v}_j$ to the shape of the curve $X_i$. Thus, the vector of the sample scores, $[\hat{\xi}_{i1}, \hat{\xi}_{i2}, \ldots, \hat{\xi}_{ip}]^{\top},$ encodes the shape of $X_i$ to a good approximation.

When using this dimension reduction we must select $d$. This is most commonly done using the Total Variation Explained (TVE) approach: we choose $d$ so that the percentage $$\mbox{TVE}_d = \frac{\hat{\lambda}_1+ \cdots + \hat{\lambda}_d}{ \int_0^1 \widehat{c}(t,t)dt} = \frac{\hat{\lambda}_1+ \cdots + \hat{\lambda}_d}{ \sum_{i=1}^\infty \hat{\lambda}_i}$$ is sufficiently large. For example a common criterion is to choose $$d = \inf \left\{ p \; :\mbox{TVE}_p \ge 0.95 \right\}.$$ In many examples this leads to a reasonably small value of $d$. Tuning the threshold for selecting $d$ and analyzing the effects this has on any conclusion drawn from the data is almost always something worth considering.

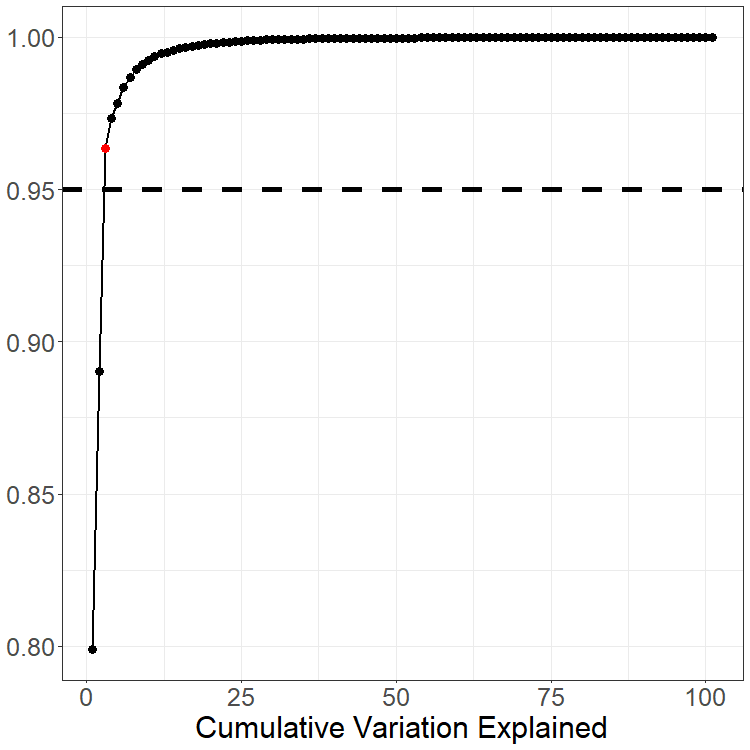

Scree plot for PCA with the FTS French mortality data.

We again return the French mortality data. The mean of the observations is shown as the thick gray line in the rainbow plot. This mean is used to center the data for PCA. Although the data is observed at 101 points each year for 207 years, only $3$ components are needed to explain 95% of the total variation; see skree plot. The first two PCs are also shown with the related coefficients.

The first PC.

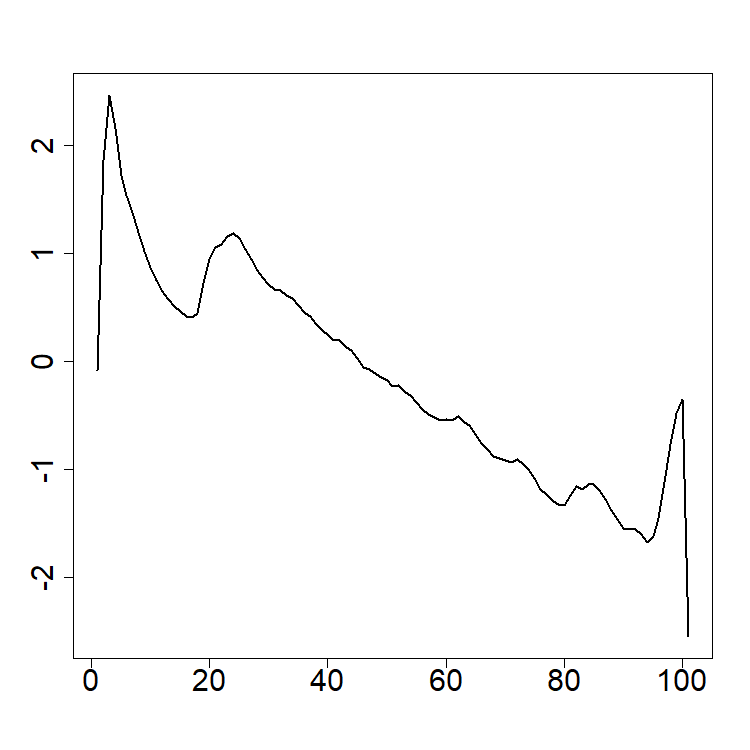

The second PC.

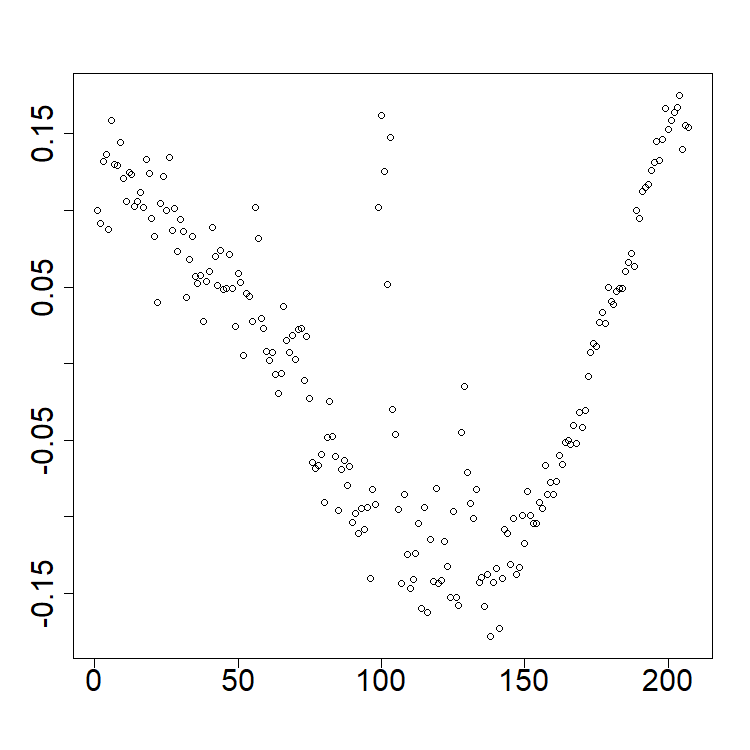

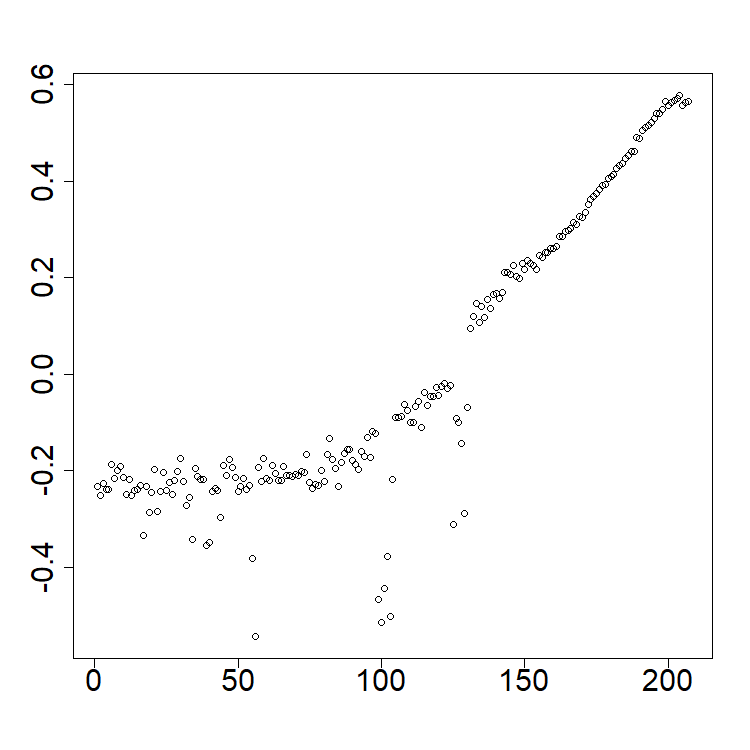

The first PC scores.

The second PC scores.

Exercises

The data for these exercises can be downloaded as given at the start of this document. These data comprise electricity spot prices in Germany:

1. Coerce the data into a dfts object and plot the raw data.

2. Turn the data into functional data objects using b-spline smoothing and Fourier basis smoothing. Try different values of the smoothing parameter $\lambda$ and observe the results.

3. Compute the mean and first three functional principal components. Compute a scree plot for this data; how many principal components are needed to explain 95% of the total variation of the data?

Forecasting functional time series

Suppose that we are given a functional time series (FTS) $\{X_i(t),\; i\in\{1,...,T\}, \; t\in[0,1]\}$, which we have perhaps obtained after applying pre-processing as introduced in Section 1.3. In this chapter we study methods to forecast the time series $h$ steps ahead, or in other words predict the curve $X_{T+h}$, as well as quantify the uncertainty in such a forecast.

The Hyndman-Ullah method

Although many methods have been introduced in the last approximately 20 years to forecast FTS, we will focus in this short course on the “Hyndman-Ullah" method (Hyndman and Ullah 2007). The idea behind this method is simple — if we suppose that the underlying curves $X_i$ may be well-approximated by their projection onto the first $J$ eigenfunctions of the covariance operator $\hat{v}_1,...,\hat{v}_J$, so that $$\begin{aligned} \label{hu} X_i(t) \approx X_i^{(J)}(t) = \hat{\mu}(t) + \sum_{j=1}^J {\xi}_{i, j} \hat{v}_{j}(t), \end{aligned}$$ then the time dynamics of the series are characterized by the $J$ scalar time series ${\xi}_{i, 1},...,{\xi}_{i, J}.$ Forecasts for $X_i$ may then be reduced to forecasting these $J$ scalar time series. Forecasting scalar time series is of course a very well understood problem, and there are a host of methods that can be used to produce forecasts of $\xi_{T+h,1},...,\xi_{T+h,J}$, which we denote $\hat{\xi}_{T+h,1},...,\hat{\xi}_{T+h,J}$. This leads to the forecast of $X_i$$$\begin{aligned} \label{forecast} \hat{X}_{T+h}(t) = \hat{\mu}(t) + \sum_{j=1}^J \hat{\xi}_{T+h, j} \hat{v}_{j}(t). \end{aligned}$$

Such forecasts are quite hard to interpret alone without some quantification of the uncertainty we expect in them. A simple way quantify the uncertainty in the forecast $$forecast$$ is to employ simulation. Many methods to produce forecasts of the component series $\xi_{i,j}$ are “model based", and readily lend themselves to simulating potential future values $\xi^{(b)}_{T+h,1},...,\xi^{(b)}_{T+h,J}$, for $b \in \{1,...,B\}$. Here $B$ is a user-specified large value that defines how many simulated future curves $X_{T+h}$ we produce. Using simulations of the component series, we may simulate the FTS as $$\hat{X}^{(b)}_{T+h}(t) = \hat{\mu}(t) + \sum_{j=1}^J {\xi}^{(b)}_{T+h, j} \hat{v}_{j}(t), \;\; b\in \{1,...,B\}.$$

By examining the variability of these simulated curves, we can get an idea of how much variability we might expect of future curves as well as how much they might deviate from the forecasted curve in $$forecast$$. For example, a pointwise in $t$ 95% prediction interval for $X_{T+h}(t)$ is constructed as $$X_{T+h}(t) \in (\hat{q}(0.025),\hat{q}(0.975) ),$$ where $\hat{q}(\alpha)$ is the $\alpha$ sample quantile of $\hat{X}^{(b)}_{T+h}(t),$$b\in \{1,...,B\}$.

We note that a model that takes into account the “dimension reduction error" in $$hu$$ is $$X_i(t) =\hat{\mu}(t) + \sum_{j=1}^J {\xi}_{i, j} \hat{v}_{j}(t) + \varepsilon_i(t),$$ where $\varepsilon_i(t)$ is a”functional residual" $$\varepsilon_i(t)= X_i(t) - X_i^{(J)}(t).$$ By taking $J$ large (or equivalently taking the TVE to be large in the PCA dimension reduction), $\varepsilon_i$ can be made smaller. Often though because it requires a more complex models of the component series we may not wish to take $J$ too large, and so $\varepsilon_i$ may be non-negligible. In order to incorporate this into the uncertainty quantification of the forecast, we can compute simulated curves as $$\hat{X}^{(b)}_{T+h}(t) = \hat{\mu}(t) + \sum_{j=1}^J {\xi}^{(b)}_{T+h, j} \hat{v}_{j}(t) + \varepsilon_{T+h}^{(b)}(t), \;\; b\in \{1,...,B\},$$ where $\varepsilon_{T+h}^{(b)}(t)$ is an iid draw from the residuals $X_i(t) - X_i^{(J)}(t), \; i \in \{1,...,T\}.$

Often when we simulate the component series $\xi^{(b)}_{T+h,1},...,\xi^{(b)}_{T+h,J}$, we do this independently across the series. Whether this is reasonable to do is often unclear. When the component series are constructed using PCA, the series are marginally uncorrelated, although can exhibit complex temporal dependency structures.

Forecasting the component series

The Hyndman–Ullah method relies on forecasting the scalar series $\xi_{i,j}$. We now discuss two simple and automated methods to do so in R. Further summaries of these models can be found in (Hyndman and Khandakar 2008).

SARIMA and the autoarima model

ARIMA models, and their seasonal versions, have been a mainstay of time series analysis since the seminal work of Box and Jenkins (Box and Jenkins 1970). These models assume that the underlying scalar time series of interest $x_t$ is in essence a linear function of a strong white noise sequence.

We say $w_t$, $t\in \mathbb{Z}$ is a strong white noise if it is a sequence of mean zero, independent, and identically distributed random variables with finite variance.

The backshift operator is denoted by $B$, and is defined by $$B^jx_t = x_{t-j}, \;\; j\ge 0.$$

Two guiding examples to consider in forecasting are the “strong white noise model", $$\begin{aligned} \label{swn} x_t = \mu + w_t, \end{aligned}$$ and the”random walk model" $$\begin{aligned} \label{rw} x_t = \mu_0 + t \mu_1 + \sum_{j=1}^t w_j. \end{aligned}$$

In the case of model $$swn$$, the best predictor of $x_n$ given past values of the series is the mean value $\mu$, which can be estimated from $x_1,...,x_{n-1}$ by the sample mean $\bar{x}$. Model $$rw$$ on the other hand can be rewritten as $$x_t = \mu_1 + x_{t-1} + w_t \; \iff \; \nabla x_{t} = x_t - x_{t-1} = (1-B)x_t= \mu_1 + w_t,$$ which makes clear that the best forecast for $x_n$ based on $x_{n-1},...,x_1$ in this case is $x_{n-1} + \mu_1$. The model $$rw$$ is also called an “integrated model", since the differenced values of the times series are a white noise and can be added (integrated) up to recover the original series. ARIMA models in essence choose between these two models while also allowing for additional serial correlation in the series.

Given a white noise sequence $\{w_t\;,\; t\in \mathbb{Z}\}$, a moving average process of order $q$ (MA($q$)) is of the form $$x_t = w_t + \theta_1 B w_t + \cdots + \theta_qB^q w_t = \theta(B)w_t,$$ where $$\theta(x) = 1 + \theta_1 x + \cdots +\theta_q x^q.$$ An AutoRegressive process of order $p$, denoted $AR(p)$, is defined by $$x_t = \phi_1 x_{t-1} + \cdots + \phi_p x_{t-p} + w_t.$$ We define the autoregressive polynomial as $$\phi(x) = 1-\phi_1 x - \cdots - \phi_p x^p,$$ so the AR(p) process is characterized by $$\phi(B)x_t = w_t.$$ An ARMA (autoregressive moving average) model is of the form $$\phi(B)x_t = \theta(B) w_t.$$

$x_t$ is said to follow an SARIMA (Seasonal Autoregressive Integrated Moving Average) model of orders $p$, $d$, $q$, $P$,$D$,$Q$ and seasonal period $s$ if $$ $$\begin{aligned} \label{SARIMA} \Phi_P(B^s)\phi(B)(1-B^s)^D(1-B)^d x_t = \Theta(B^s)\theta(B)w_t. \end{aligned}$$

$$ This is abbreviated $x_t \sim SARIMA(p,d,q)\times (P,D,Q)_s$.

The seasonal period is typically supplied by the practitioner and is often chosen to match the predominant “seasonality" or”periodicity" in the series. For instance with daily data $s=7$ might be used to model weekly seasonality. This is typically achieved in R by specifying the frequency parameter of at time series object.

Here we use the function auto.arima from the forecast and fpp2 packages in R to select and fit such models. This function first selects the differencing degrees $D$ and $d$ via applying a KPSS stationarity (Kwiatkowski et al. 1992) test to the time series $x_t$ and $\nabla x_t$. The ARMA orders $p,q, P,$ and $Q$ are selected using the AIC information criterion, and the model parameters are estimated via maximum likelihood estimation assuming the model errors $w_t$ are Gaussian.

We note that by simulating the error process $w_t$ and iterating the recursion for $x_t$ in $$SARIMA$$, we can simulate approximate future values of the series $x_{T+h}^{(b)}$.

Exponential Smoothing and the ets model

Exponential smoothing was introduced in the late 1950’s. The basic principle behind exponential smoothing is that for a time series $x_1,...,x_n$, two extreme forecasts are again

$$\hat{x}_{n+1} = x_n \;\; \longrightarrow \mbox{ random walk prediction }$$

$$\hat{x}_{n+1} =\bar{x}= \sum_{j=1}^{n} \frac{1}{n} x_j \;\; \longrightarrow \mbox{ iid noise prediction. }$$ We notice that both of these forecasts are weighted linear combinations of the past values of the series $x_1,...,x_n$: the random walk model puts full weight on $x_n$, whereas the iid noise model puts even weights $1/n$ on each value.
For general time series the optimal prediction might fall between these extremes. Exponential smoothing models generally suppose that these weights decay geometrically.
Simple Exponential Smoothing: We forecast $x_n$ with $$\hat{x}_{n+1} = \alpha x_n + \alpha (1-\alpha)x_{n-1} + \alpha(1-\alpha)^2 x_{n-2} + \cdots$$$0 \le \alpha \le 1$. This prediction may be restated as: $$\begin{aligned} \mbox{ Forecast Equation }& \quad \hat{x}_{n+1} = \ell_n \\ \mbox{ Smoothing Equation }& \quad \ell_n = \alpha x_n + (1-\alpha)\ell_{n-1} =\ell_n(\alpha,\ell_0) \\ \mbox{ Initial Condition }& \quad \ell_0 \end{aligned}$$

Here $\alpha$ and $\ell_0$ are the scalar parameters defining this prediction, and can be estimated via least squares: $$(\hat{\alpha},\hat{\ell}_0) = \arg\min_{0\le a \le 1, l_0} \sum_{i=2}^{n}(x_i - \ell_i(a,l_0))^2$$

Linear Trend Exponential Smoothing: In order to make a forecast $m$ steps ahead, we extrapolate the trend linearly as follows: $$\begin{aligned} \text{Forecast equation}&& \hat{x}_{n+m} &= \ell_{n} + mb_{n} \\ \text{Level equation} && \ell_{n} &= \alpha x_{n} + (1 - \alpha)(\ell_{n-1} + b_{n-1})\\ \text{Trend/Slope equation} && b_{n} &= \beta(\ell_{n} - \ell_{n-1}) + (1 -\beta)b_{n-1}, \end{aligned}$$ Scalar Parameters: $\alpha,\beta, \ell_0,b_0$ can once again be estimated using least squares.

Trend+Seasonal Exponential Smoothing (Holt-Winters ES): If a time series exhibits seasonality at period $p$, then we incorporate it into the forecast as follows. Letting $k=\lfloor (m-1)/p \rfloor$, $$\begin{aligned} \text{Forecast equation} && \hat{x}_{n+m} &= \ell_{n} + mb_{n} + s_{n+m-p(k+1)} \\ \text{Level equation}&& \ell_{n} &= \alpha(x_{n} - s_{n-p}) + (1 - \alpha)(\ell_{n-1} + b_{n-1})\\ \text{Trend equation}&& b_{n} &= \beta(\ell_{n} - \ell_{n-1}) + (1 - \beta)b_{n-1}\\ \text{Seasonal equation}&& s_{n} &= \gamma (x_{n}-\ell_{n-1}-b_{n-1}) + (1-\gamma)s_{n-p}, \end{aligned}$$ Scalar Parameters: $\alpha,\beta,\gamma, \ell_0,b_0,s_0,...,s_{-p+1}$ can be estimated using least squares.

We note that each of these models may be rewritten in what is called “state-space" or”innovations" form. For example, the simple exponential smoothing model may be rewritten as: $$\begin{aligned} \text{Observation equation} && x_t &= \ell_{t-1} + \varepsilon_t \\ \text{State equation} && \ell_t&=\ell_{t-1}+\alpha \varepsilon_t, \end{aligned}$$ where $\varepsilon_t$ is an innovation sequence representing the residuals $x_t - \ell_{t-1}$. By assuming for instance that these residuals are Gaussian, one can once again easily simulate future values of the series $x_{T+h}^{(b)}$ as well as conduct model selection using information criteria such as AIC.

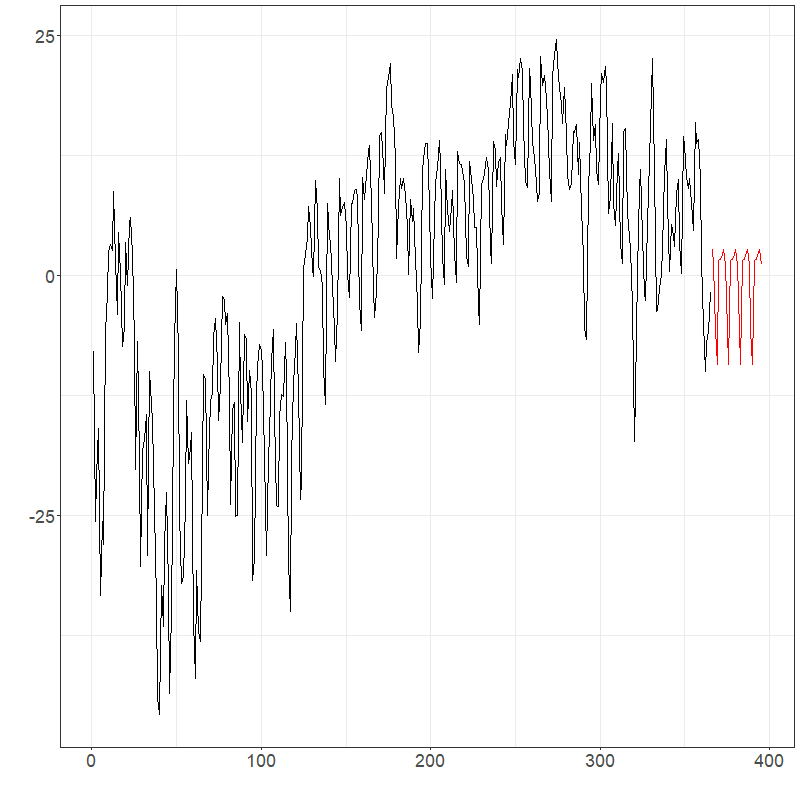

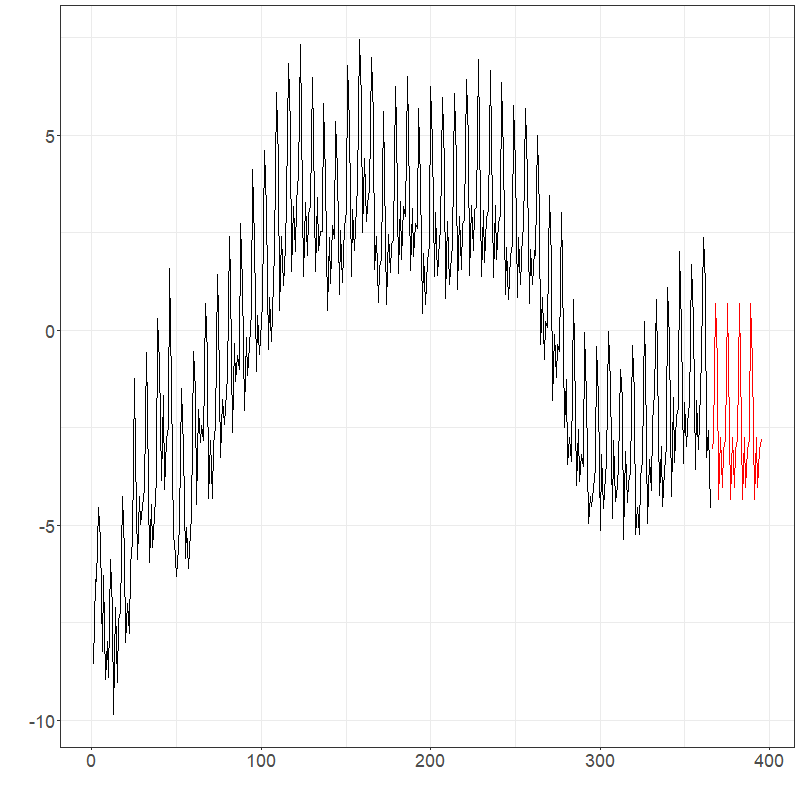

The ets() function from the fpp2 package in R fits such exponential smoothing models using least squares and conducting model selection between standard, linear trend, and seasonal/Holt-Winters models using AIC. We note this function also chooses among “multiplicative seasonality" versions of the same models. A multiplicative Holt-Winters model for a non-negative time series can be more appropriate if the seasonal/periodic fluctuations of the series increase (or decrease) as a function of the level of the series.

Time Series Cross-Validation

A useful tool choosing between such models is to use time series cross-validation. Suppose we wish to evaluate the quality of a model choice $g$. For example, we might wish to compare SARIMA and Exponential smoothing to produce forecasts. We proceed as follows:

1. Select training, validation, and testing ranges, $1 \le tr \le v \le test \le T$, e.g. $(70\%,15\%,15\%)$ of the data. Note: In forecasting applications we often forego the testing set and just use training and validation sets.

2. For $j \in \{tr,...,v\}$, forecast $\hat{X}_{j+1}$ based on the curves $X_1,...,X_j$ using model $g$, or if we are interested in horizon $h$ forecasting forecast $\hat{X}_{j+1},...,\hat{X}_{j+h}$. Calculate losses $$L_j(g) = \int_0^1 [X_j(t) - \hat{X}_j(t)]^2 dt,$$ or $$L_j(g) = \sum_{\ell =1 }^h \int_0^1 [X_{j+\ell}(t) - \hat{X}_{j+\ell}(t)]^2 dt.$$

3. A CV loss score for the model $g$ can be taken as $$CV(g) = \frac{1}{(v-tr)}\sum_{j=tr+1}^{v}L_j(g).$$ Small values of $CV(g)$ suggest better performance.

This type of time series cross-validation is often called “expanding window" cross-validation, since we forecast $X_j$ at each stage using all of the previous data $X_1,...,X_j$. A schematic of how this works is shown in Figure 2.1.

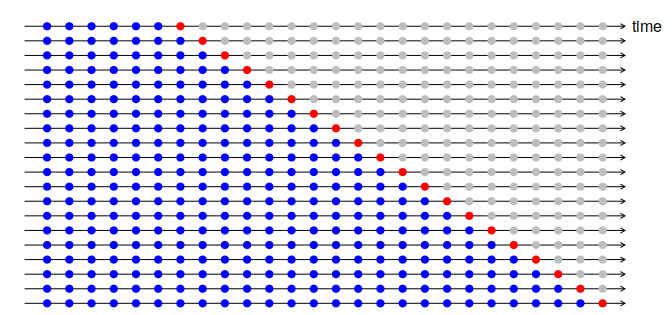

“Expanding window" Time Series Cross-Validation Diagram.

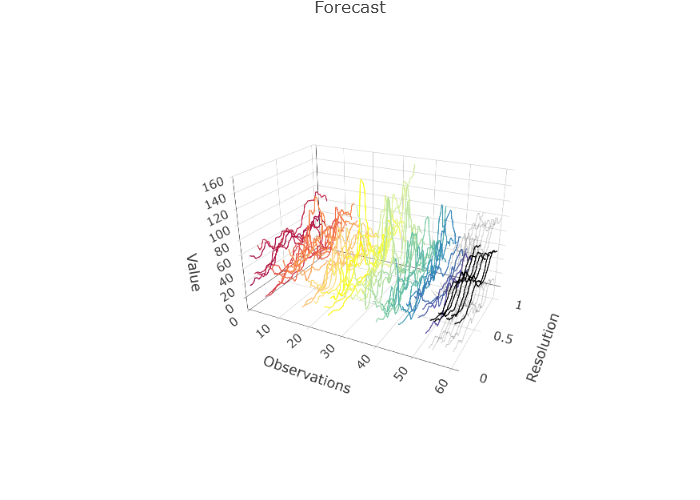

Examples

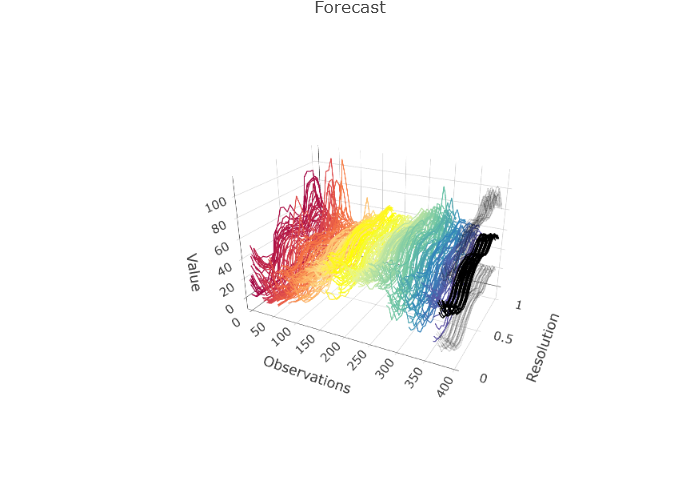

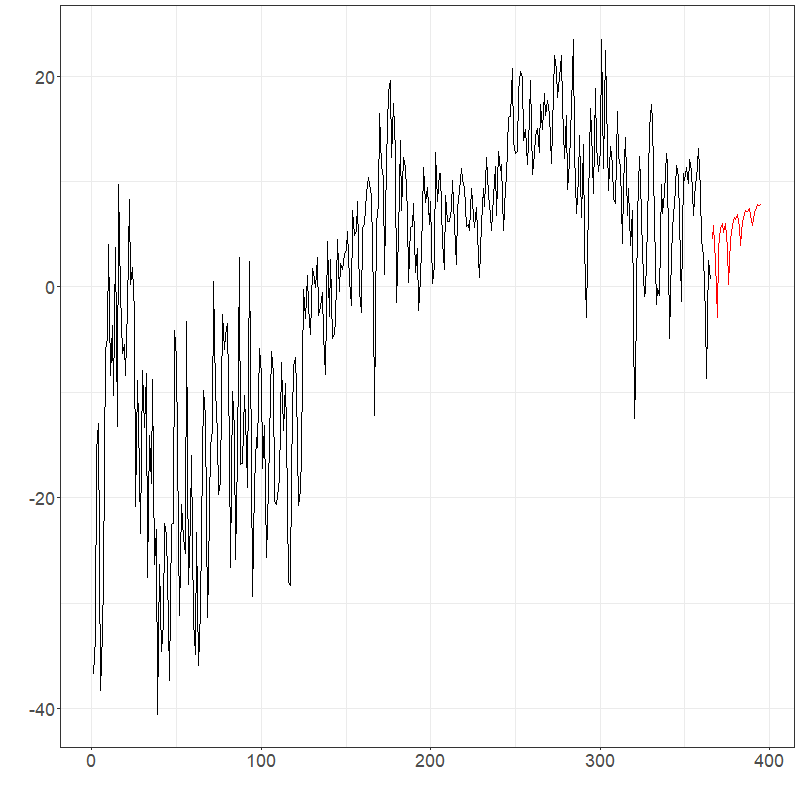

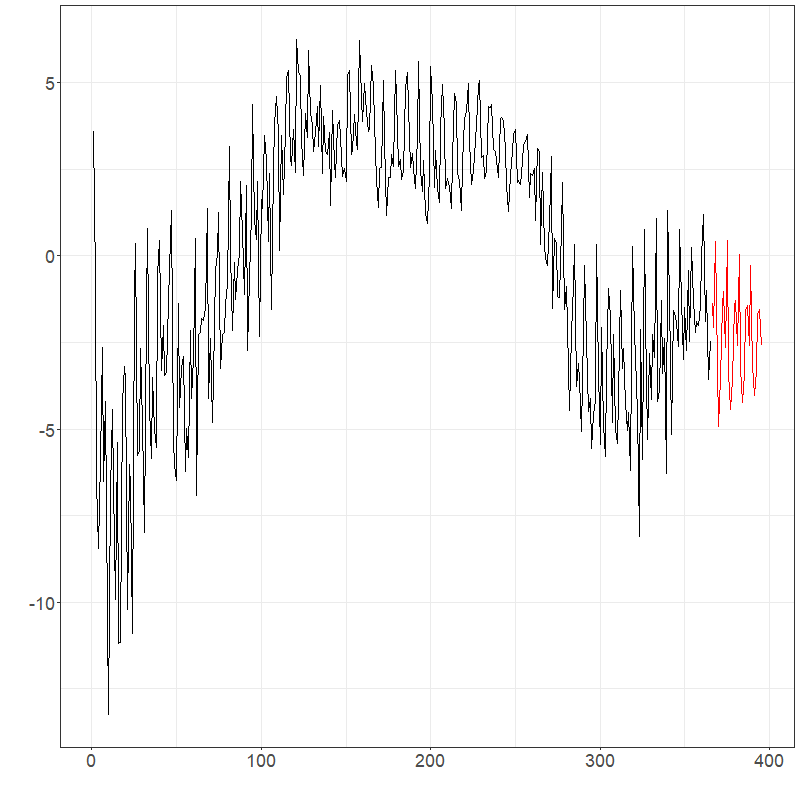

Suppose that the goal was to forecast the electricity prices shown previously for the next month. It is natural to assume this data has weekly seasonality due to the typical work schedule. Using PCA as discussed in Section 1, $7$ PCs can be used to explain over 99% of the variation in the data. Figures below show forecasts for the first two PCs and the entire electricity data using ets and arima Hyndman-Ullah models. Although differentiating the models visualizing is difficult, one-step CV one the last 20% of the data gives MSE estimates of approximately 2280 (ets) and 2522 (arima), suggesting the use of an ets model gives about a 10% improvement.

Exercises

The data for these exercises can be downloaded as given at the start of this document. These data comprise electricity spot prices in Germany:

1. Forecast the data set three weeks ahead using the Hyndman-Ullah method. Compare using the autoarima and ets models to produce the component forecasts.

2. Run a cross-validation experiment to compare several model choices, e.g. autoarima vs ets, log-transforms, choice of TVE, etc.

Autocorrelation analyses, white noise, and stationarity testing

In time series analysis we often seek to understand the serial dependence structure of the series. This is useful in many respects: it aids us in identifying periodicity in the series, it helps us to investigate departures of the data from the stationarity assumption, and it is useful in selecting an appropriate model. A related task is to perform “goodness-of-fit" testing and model diagnostic checks to model residuals to evalute the fidelity of the data to a given model. If for instance forecasting model residuals exhibit significant serial dependence, it seems possible that we could have constructed a better model.

In this chapter we discuss several ways to investigate the serial dependence structure of an FTS, as well as conduct other diagnostic tests with FTS.

Autocorrelation measures

One standard way to investigate the serial dependence of a time series is in terms of serial correlation. The autocovariance operator at lag $h$, $h \ge 0$, is defined by $$\label{e:cov_op} \Gamma_h(x)(t) := \int \gamma_h(t, s) x(s) ds, \ \ \ x\in L^2[0,1],$$ where $\gamma_h(t, s)$ is the autocovariance kernel defined by $$\label{e:cov_den} \gamma_h(t,s) :=E [ (X_i(t)-\mu(t))(X_{i+h} (s)-\mu(s))],\ \ \ \ t,s \in [0,1].$$ At lag zero, $\Gamma_0 = C$, where $C$ is the covariance operator in . The functions $\gamma_h(\cdot, \cdot)$, $h\ge 0$, characterize the serial correlation in the series $\{ X_i\}$. Given functional observations, $X_1,\ldots, X_T$, $\gamma_h$ can be estimated using its sample counterpart $$\label{e:empcov} \hat\gamma_{T,h}(t,s):=\frac{1}{T}\sum_{i=1}^{T-h} (X_i(t)-\bar{X}_T(t))(X_{i+h}(s)-\bar{X}_T(s)), \ \ \ 0 \le h < T.$$

A simple graphical summary of the serial dependence in the series can be obtained by plotting $$\begin{aligned} \label{e:facf} \hat{\rho}_h =\frac{\|\hat{\gamma}_{T,h}\|_2}{\int \hat{\gamma}_{T,0}(t,t)dt} \end{aligned}$$ as a function of $h$, which we refer to as the functional autocorrelation function (fACF).

The coefficient $\hat\rho_h$ is a scale-free measure satisfying $0 \le \hat\rho_h \le 1$, and quantifies the strength of the serial correlation in a series. For a function-valued white noise, we expect all autocorrelations at each nonzero lag to be close to zero.

The function acf() when applied to a dfts object plots the fACF as a function of $h$, where $h = 1, \ldots, H$. By default, the function plots $95\%$ confidence bounds for the autocorrelation assuming the series forms a strong white noise, as well as confidence bounds assuming the series is drawn from a general function-valued weak white noise process that is serially uncorrelated. The latter bounds are preferable for evaluating the serial dependence of an FTS potentially exhibiting volatility (conditional heteroscedasticity), for example those derived from high-frequency asset prices.

A robust graphical summary of the serial dependence in an FTS is the functional spherical autocorrelation function (fSACF). The fSACF at lag $h$ is computed by the average of the inner product of lagged pairs of the series $X_i$ and $X_{i+h}$ that have been centered: $$\label{e:sacf} \tilde\rho_h=\frac{1}{T}\sum_{i=1}^{T-h} \langle \frac{X_i - \tilde{\mu}}{\|X_i - \tilde{\mu}\|}, \frac{X_{i+h} - \tilde{\mu}}{\|X_{i+h} - \tilde{\mu}\|} \rangle,\ \ \ \ 0 \le h < T,$$ where $\tilde{\mu}$ is the estimated spatial median of the series. The range of the measure is $-1 \le \tilde{\rho}_h \le 1$. The fSACF provides advantages that the fACF does not: 1) it captures not only the magnitude but also the direction of the serial correlation in the series, 2) it is more robust against outliers. See the function sacf().

The Spanish electricity data contains patterns that are reflected in the fACF and fSACF plots given below. The differenced data, which subtracted the previous days’ prices from current day, shows far less signal but with noticeable spikes every 7 lags, suggesting there remains weekly seasonality; see below.

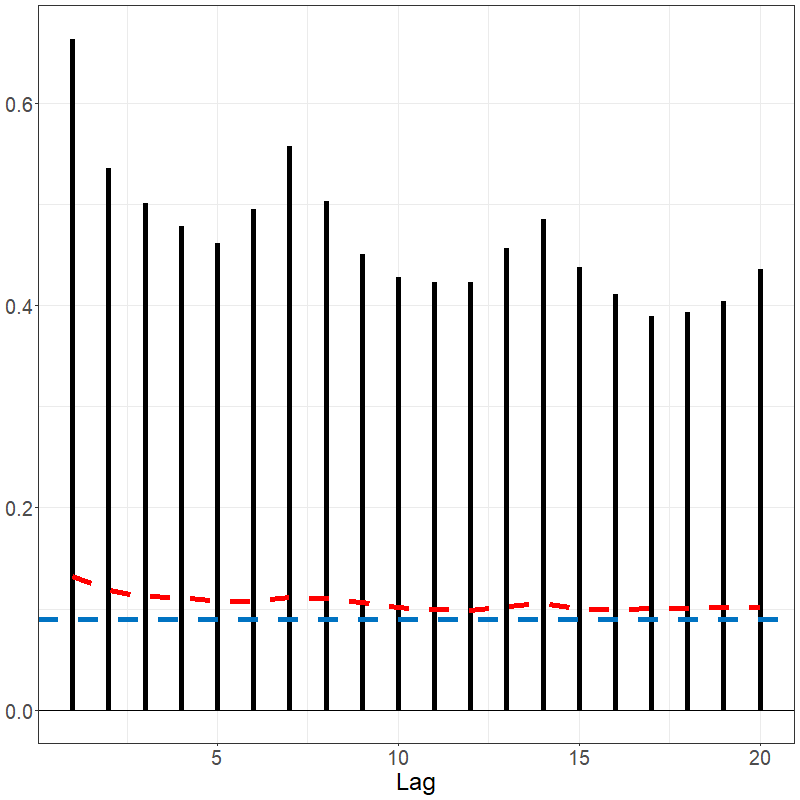

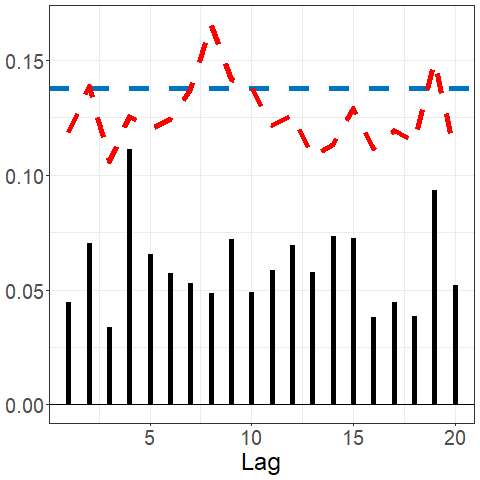

Autocorrelation in the electricity data as described by the fACF.

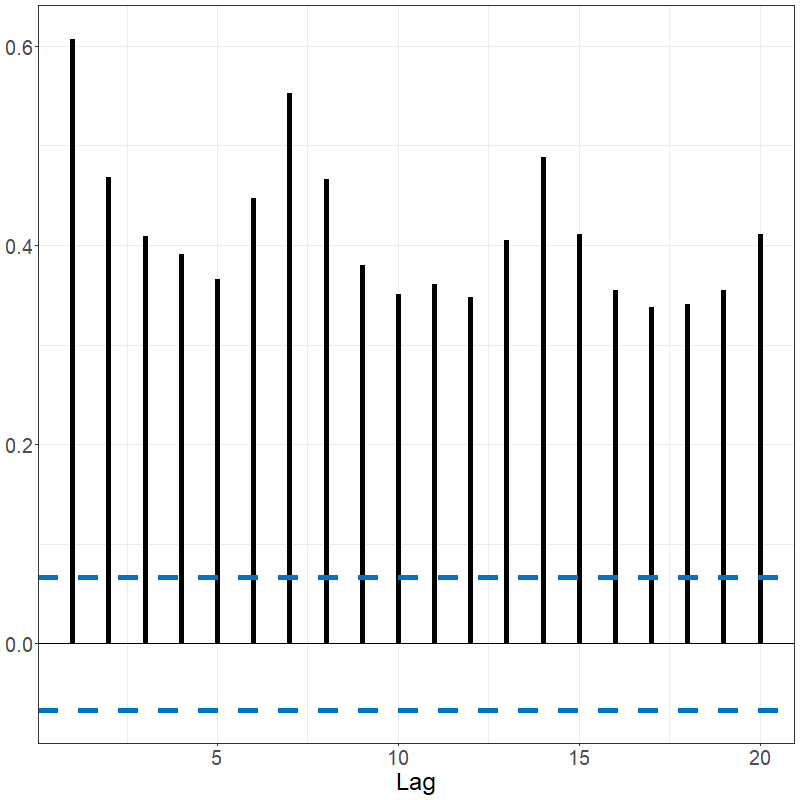

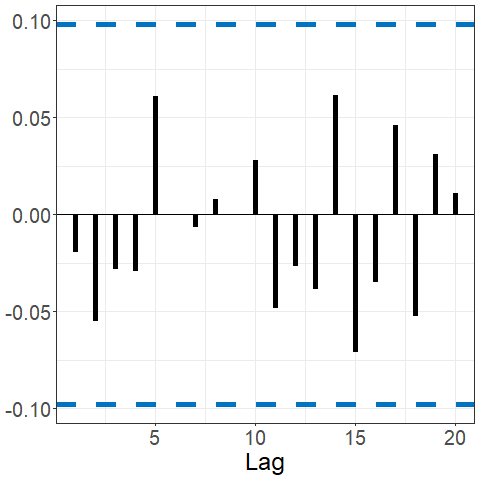

Autocorrelation in the electricity data as described by the fSACF.

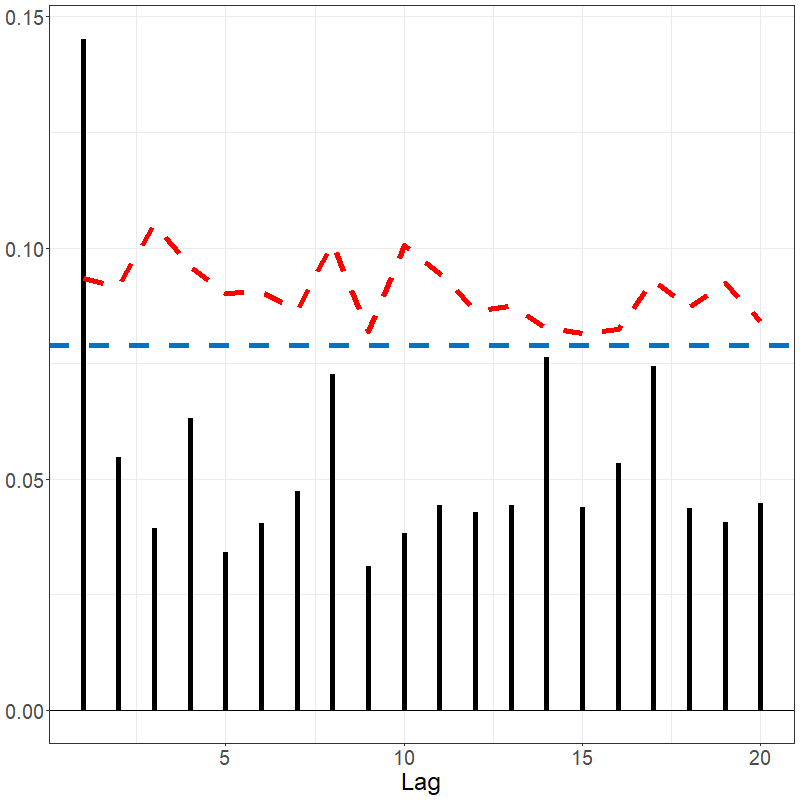

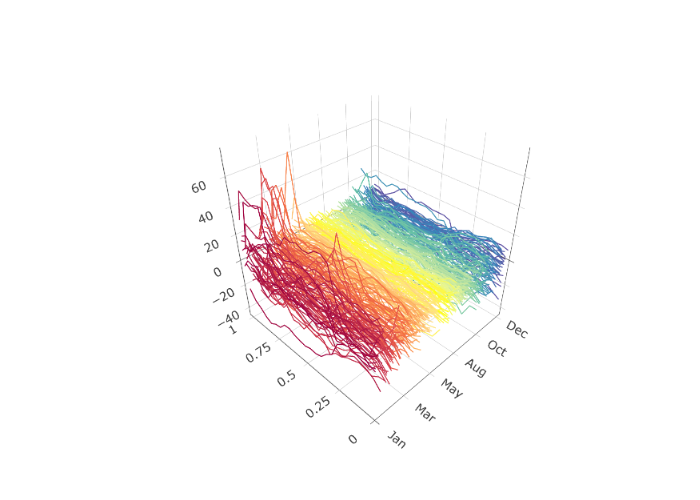

Autocorrelation in the electricity data model residuals as described by the fACF.

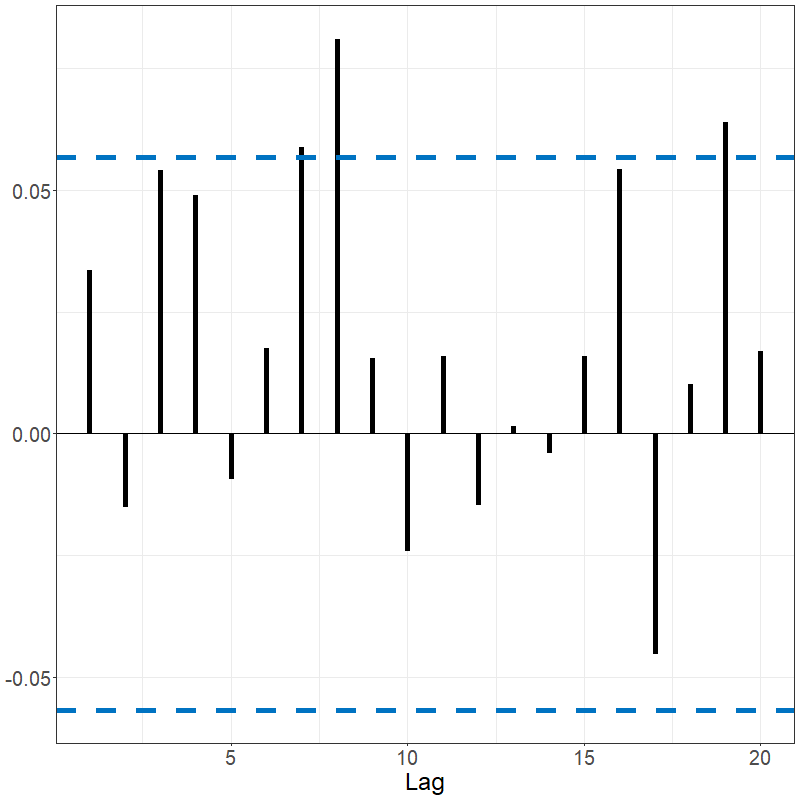

Autocorrelation in the electricity data model residuals as described by the fSACF.

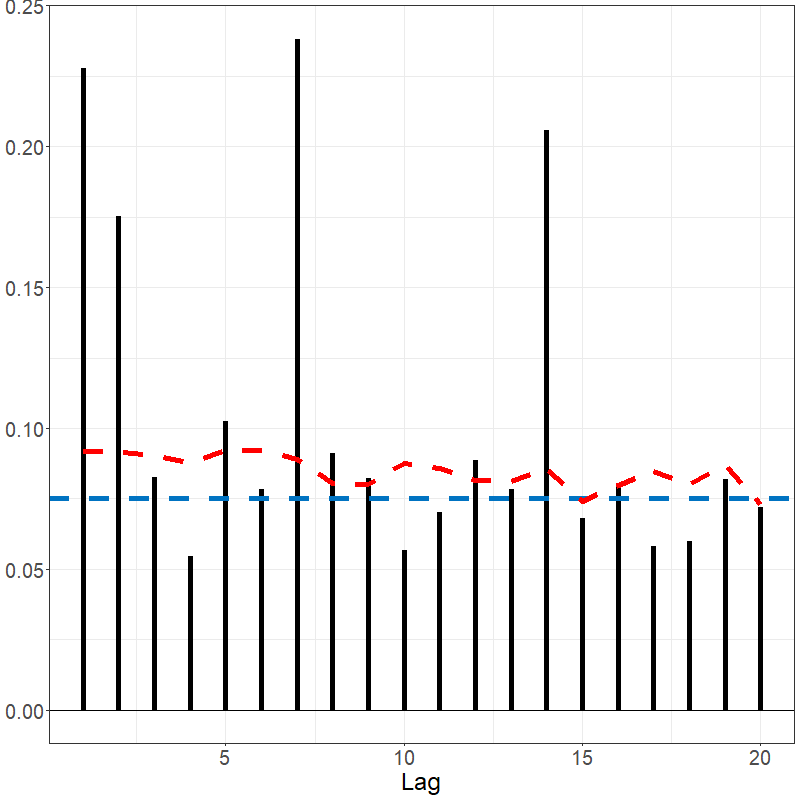

Autocorrelation in the differenced electricity data as described by the fACF.

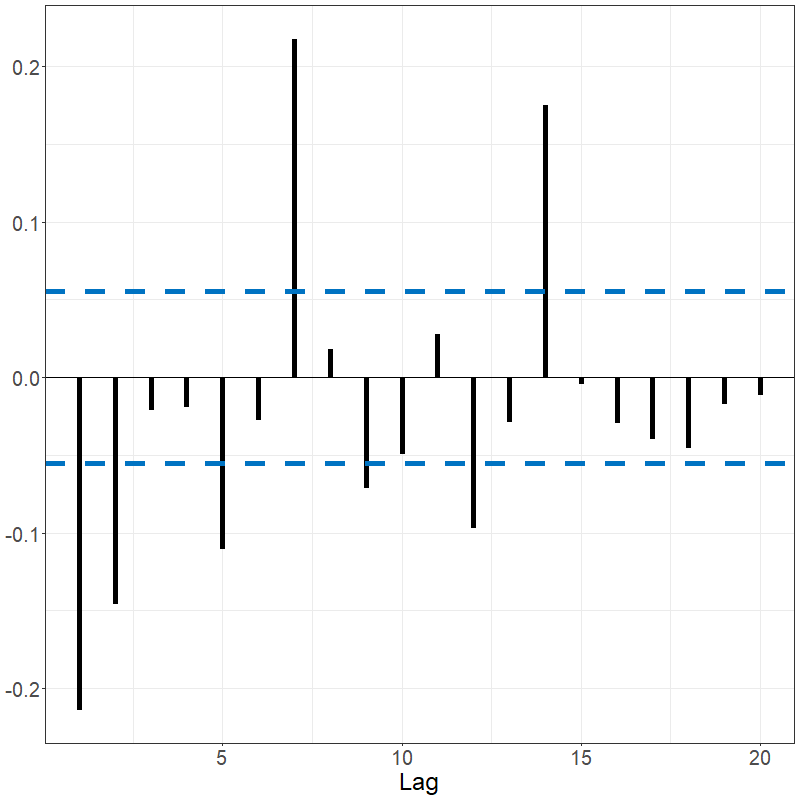

Autocorrelation in the differenced electricity data as described by the fSACF.

White noise tests

If an FTS is a function valued white noise, or in other words is comprised of independent and identically distributed curves, then we expect to see $\hat{\rho}_h \approx 0$ all $h$. We often test whether a series appears to be a white noise by aggregating the values of $\hat{\rho}_h$ or several values of $h$. One example of such a test statistic is $${\rm KRS}_{T,H} = T \sum_{h=1}^H\|\hat\gamma_{T,h}\|^2,$$ which was introduced in (Kokoszka, Rice, and Shang 2017) and measures the serial covariance in the series aggregated up to a user-specified maximum lag $H$. A higher value of ${\rm KRS}_{T,H}$ suggests a potential departure of the observed series from a white noise process. The approximate null distribution of this statistic has been computed for FTS that are strong or weak white noise processes, which facilitates the calculation of a $p-$value of such a white noise test.

Many similar white noise tests for FTS have been developed based on other measures and aggregation principles, and a number of them are implemented in the function portmanteau_tests().

The residuals of the electricity arima-based Hyndman-Ullah model and the related fSACF are shown below. It appears that the majority of the autocorrelation was captured with the model; however, the residuals still do not be appear to be white noise per the portmanteau multi-lag white noise tests’ p-values shown in Figure 3.4.

Residuals from the arima-based Hyndman-Ullah model.

Autocorrelation of the residuals from the arima-based Hyndman-Ullah model.

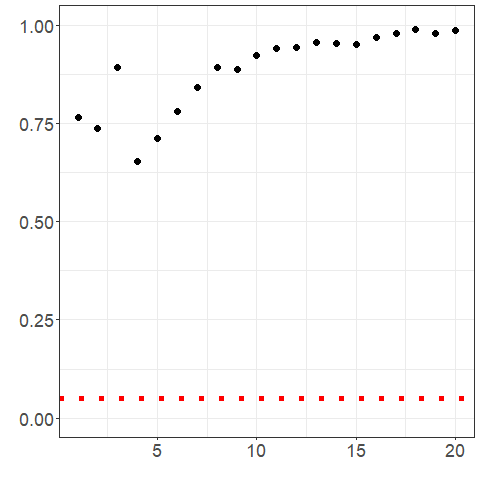

Multi-lag white noise portmanteau tests’ p-values for the residuals from the arima-based Hyndman-Ullah model.

Stationarity and Change-Point Testing

Since many procedures to analyze FTS assume at some level that the data are stationary, it is useful to have methods to evaluate the plausibility of that assumption. Moreover, in many cases evident departures from stationarity appear to be due to shocks or “structural changes" to the data generating mechanism. Such”change points" can be of independent interest, or we might alter models that we use for FTS in light of detecting and estimating the locations of such changes. The methods used for this latter task fall under the umbrella of change point analysis.

Test statistics for stationarity and change point detection often rely on the functional partial sum process, $$\begin{aligned} \label{eq:partial_sum} S_T(x,t) = \frac{1}{\sqrt{T}} \sum_{i=1}^{\lfloor T x\rfloor} X_i(t) \end{aligned}$$ where $x\in[0,1]$ is termed the “partial sample parameter". Note that $S_T(1,t) = \sqrt{T}\bar{X}_T$. This can be used to define the cumulative sum (CUSUM) process $$\begin{aligned} \label{eq:CUSUM} Z_T(x, t) = S_T(x,t) - x S_T(1,t)\,. \end{aligned}$$ When the data are non-stationary, the CUSUM process tends to fluctuate more with respect to the partial sample parameter $x$ than when the data are stationary. Natural test statistics based on the CUSUM process that measure the magnitude of $Z_{T}$ are

$$\begin{aligned} I_T = \int_0^1 \hspace{-.1cm} \int_0^1 Z_T^2(x,t) dt\,dx\, , \end{aligned}$$ and $$\begin{aligned} M_T = \sup_{x \in [0,1]} \int_0^1 Z_T^2(x,t) dt. \end{aligned}$$

Methods are proposed in (Aue, Rice, and Sönmez 2018) and (Horváth, Kokoszka, and Rice 2014) to produce $p-$values assessing the evidence against the hypothesis that the data are stationary and that there are no change points present based on these statistics.

One stationary test is implemented as stationary_test(). The Spanish electricity data has a p-value $<0.001$ for the stationary test. The first difference and the model residuals both return non-significant p-value, suggesting stationarity.

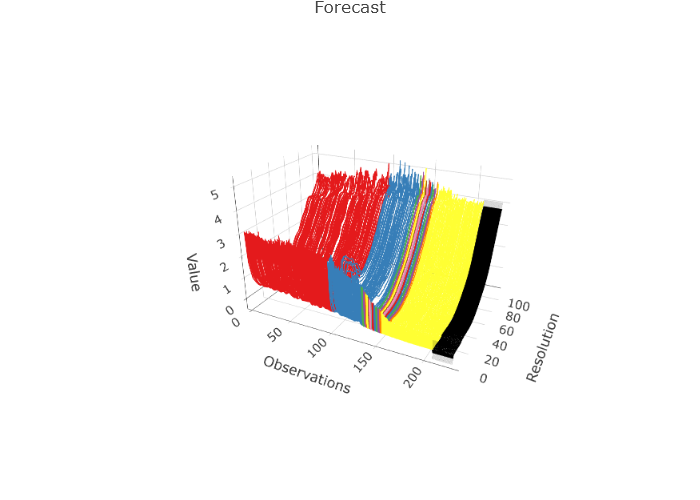

Applying change point detection on the electricity data, two change point are observed; see Figure 3.5. Since this suggests regions of homogeneity in the data, CV was re-run to compare the previous models to models based on only the last homogeneous segment: 2281 (ets), 2522 (arima), 2426 (ets with cp), and 2784 (arima with cp). Although the data in the last segement appears to be more homogenous, in this case the reduction of data lead to worse CV performance.

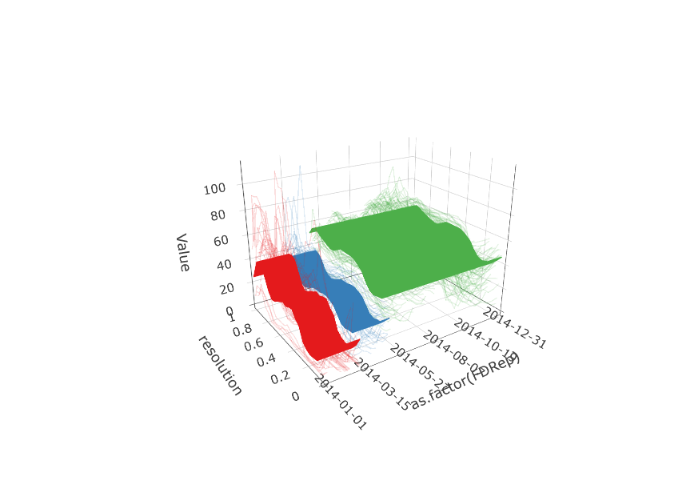

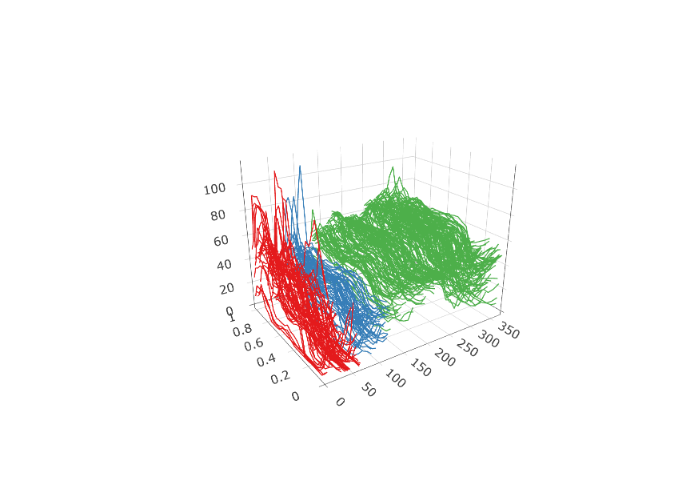

Changes in the distribution of the electricity data.

Exercises

The data for these exercises can be downloaded as given at the start of this document. These data comprise electricity spot prices in Germany:

1. Apply an autocorrelation analysis to the German electricity price data. Apply a similar analysis to the residuals of a forecasting model for such data, and comment on whether the model appears to be fitting well.

2. Apply a white noise test to the model residuals of a forecasting model of the German electricity prices.

3. Apply a stationarity test to the German electricity data and to its model residuals.

4. Using what you have learned so far, come up with the best forecast that you can for the German electricity price data 2 weeks ahead. Let the instructor know when you have completed this.
